341V

341V; Telefunken; Budapest (ID = 138072) Radio
341V; Telefunken; Budapest (ID = 1987347) Radio 341V; Telefunken; Budapest (ID = 1987351) Radio
341V; Telefunken; Budapest (ID = 133235) Radio 341V; Telefunken; Budapest (ID = 1978991) Radio
341V; Telefunken; Budapest (ID = 1978994) Radio 341V; Telefunken; Budapest (ID = 1978995) Radio
341V; Telefunken; Budapest (ID = 1987348) Radio 341V; Telefunken; Budapest (ID = 1987352) Radio
341V; Telefunken; Budapest (ID = 1987353) Radio 341V; Telefunken; Budapest (ID = 1987354) Radio
Use red slider bar for more.
341V; Telefunken; Budapest (ID = 1987347) Radio
Telefunken; Budapest: 341V [Radio] ID = 1987347 1400x1094
Select picture or schematic to display from thumbnails on the right and click for download.
For model 341V, Telefunken; Budapest:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Telefunken; Budapest
Year: 1941 Category: Broadcast Receiver - or past WW2 Tuner

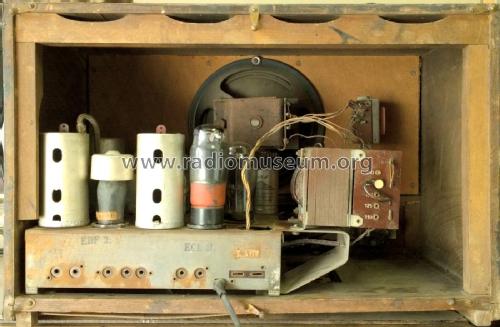

Valves / Tubes 4: ECH4 EBF2 ECL11 AZ1
Main principle Superheterodyne (common); ZF/IF 472 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker -Loudspeaker incorporated, but system not known.
Power out
from Radiomuseum.org Model: 341V - Telefunken; Budapest
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 510 x 330 x 280 mm / 20.1 x 13 x 11 inch

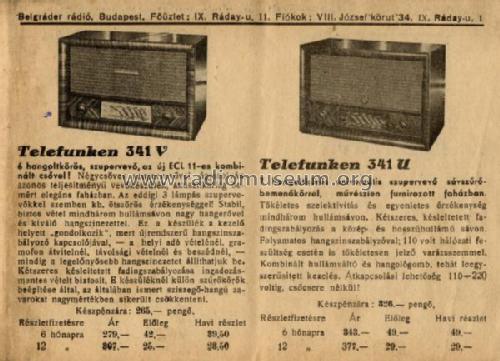

Price in first year of sale 265.00 pengö
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Folkert Rothe. See "Data change" for further contributors.



All listed radios etc. from Telefunken; Budapest
Here you find 91 models, 87 with images and 63 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
