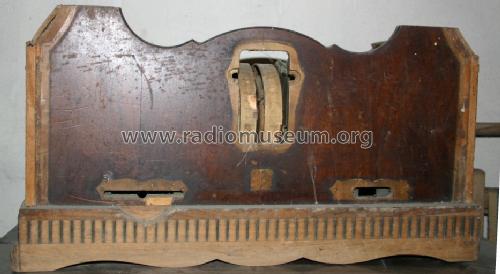

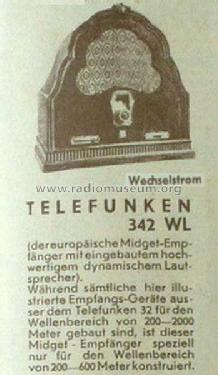

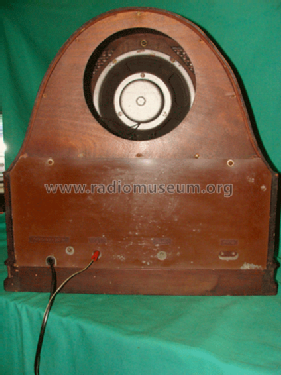

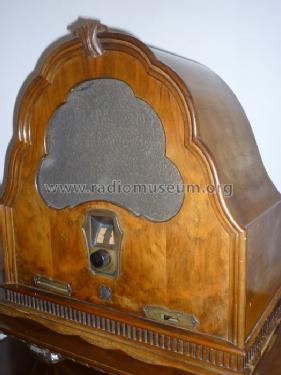

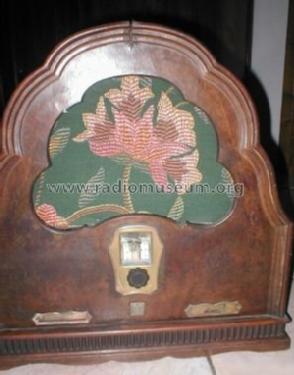

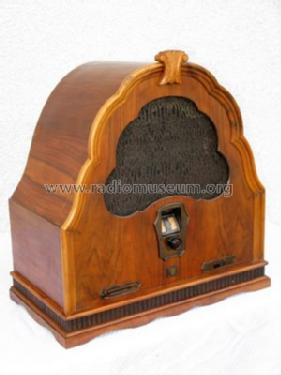

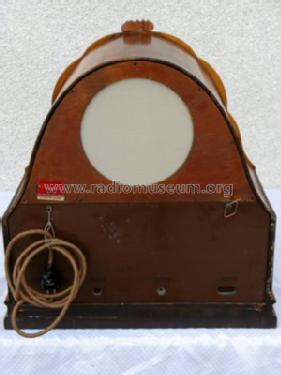

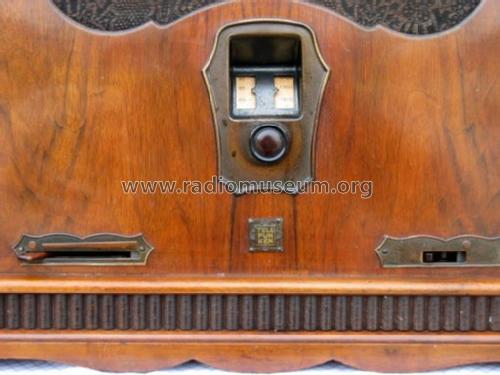

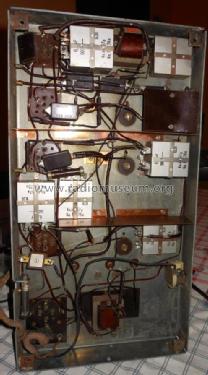

342WL

• Country
• Italy

• Manufacturer / Brand
• Telefunken Italia, Milano

• Year
• 1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 96580

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

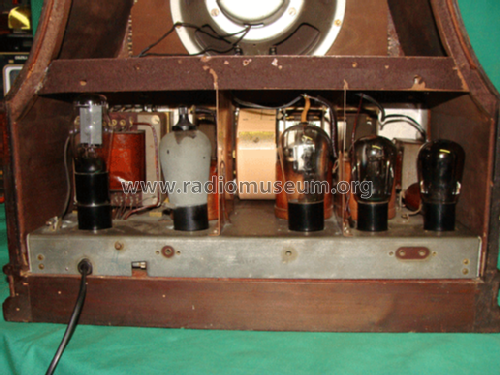

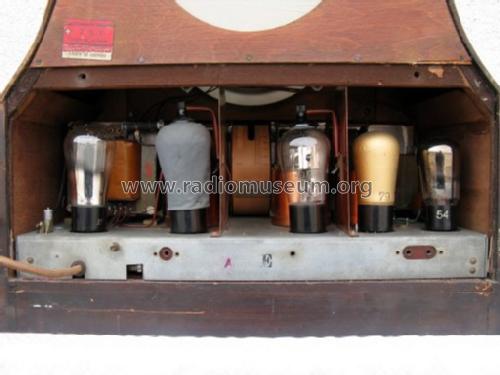

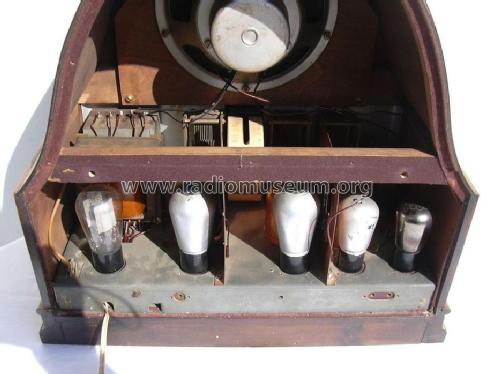

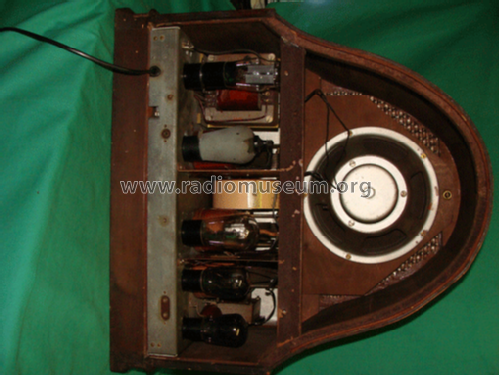

• Valves / Tubes
• RENS1204 RENS1204 REN904 RE304 RGN1054

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); Reaction

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 342WL - Telefunken Italia, Milano

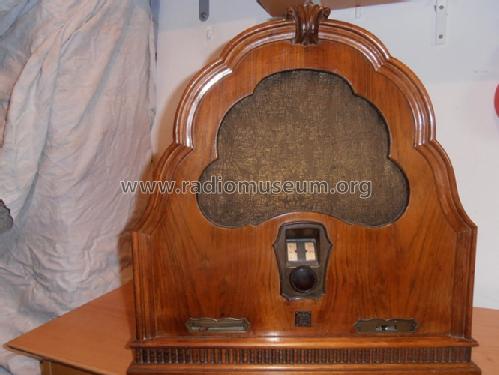

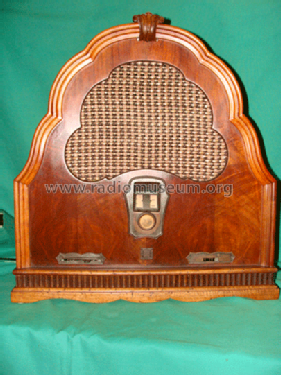

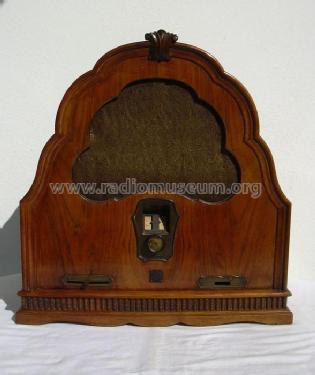

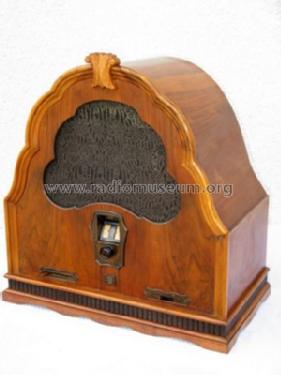

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Dimensions (WHD)
• 490 x 500 x 280 mm / 19.3 x 19.7 x 11 inch

• Net weight (2.2 lb = 1 kg)
• 18.4 kg / 40 lb 8.5 oz (40.529 lb)

• Price in first year of sale
• 1,780.00 ITL

• Source of data
• Guida Pratica Antique Radio III (2000)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
