• Year
  • 1932
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 118048

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • TRF with regeneration
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast and LongWave in ONE range.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 160; 220 Volt
  • Loudspeaker
  • Magnetic loudspeaker (reed) generic.
  • Material
  • Wooden case
  • from Radiomuseum.org

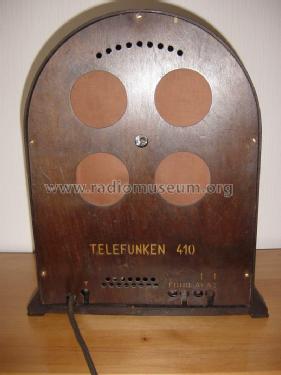

  • Model: 410 - Telefunken Italia, Milano
  • Shape

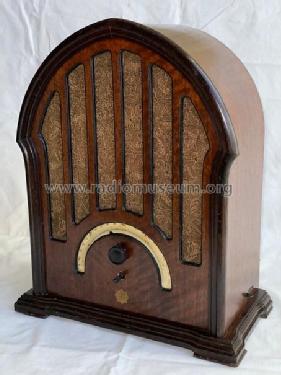

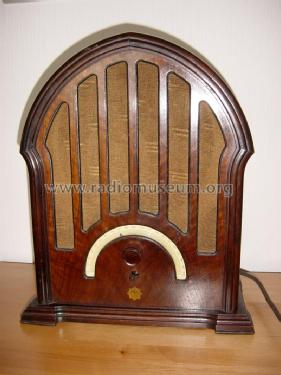

  • Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
  • Notes
  • Apparecchio senza trasformatore di uscita. Unica bobina che aziona direttamente il cono diffusore.
    Ingresso Pick-Up.

  • Price in first year of sale
  • 700.00 ITL
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
