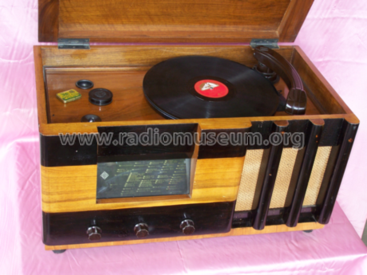

471; Telefunken Italia, (ID = 53946) Radio

471; Telefunken Italia, (ID = 1012866) Radio
471; Telefunken Italia, (ID = 1012867) Radio 471; Telefunken Italia, (ID = 1012868) Radio
471; Telefunken Italia, (ID = 1012869) Radio 471; Telefunken Italia, (ID = 1012870) Radio
471; Telefunken Italia, (ID = 1012872) Radio 471; Telefunken Italia, (ID = 1012874) Radio
471; Telefunken Italia, (ID = 1012875) Radio 471; Telefunken Italia, (ID = 1012877) Radio
Use red slider bar for more.
471; Telefunken Italia, (ID = 1012867) Radio
Telefunken Italia,: 471 [Radio] ID = 1012867 384x288
Select picture or schematic to display from thumbnails on the right and click for download.
For model 471, Telefunken Italia, Milano

Country:  Italy
Manufacturer / Brand:  Telefunken Italia, Milano
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: WE43 WE44 WE38 or AL4 WE54 or AZ1
Main principle Superheterodyne (common); ZF/IF 469 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 2 W (unknown quality)
from Radiomuseum.org Model: 471 - Telefunken Italia, Milano
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 670 x 350 x 370 mm / 26.4 x 13.8 x 14.6 inch
Notes

Versione radiofonografo del modello 468.


Source of data Guida Pratica Antique Radio (1) 1999
Literature/Schematics (1) Il Radio Libro (E.D. Ravalico) Edizioni Hoepli
Literature/Schematics (2) Il Radio Libro, (Ravalico) 6a edizione 1942

Model page created by Alessandro De Poi. See "Data change" for further contributors.
