542BK (T542BK)

542BK ; Telefunken (ID = 27169) Radio

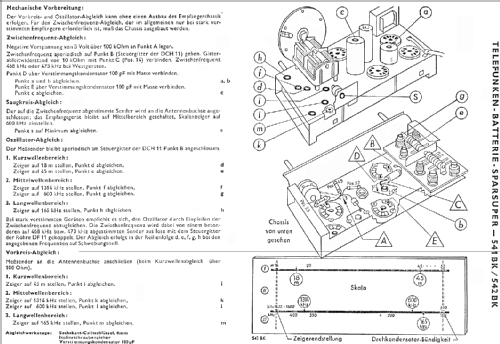

542BK ; Telefunken (ID = 27170) Radio

542BK ; Telefunken (ID = 11046) Radio

542BK ; Telefunken (ID = 27171) Radio

542BK ; Telefunken (ID = 27172) Radio

542BK ; Telefunken (ID = 7473) Radio
542BK ; Telefunken (ID = 125770) Radio 542BK ; Telefunken (ID = 125768) Radio
542BK ; Telefunken (ID = 125773) Radio 542BK ; Telefunken (ID = 125769) Radio

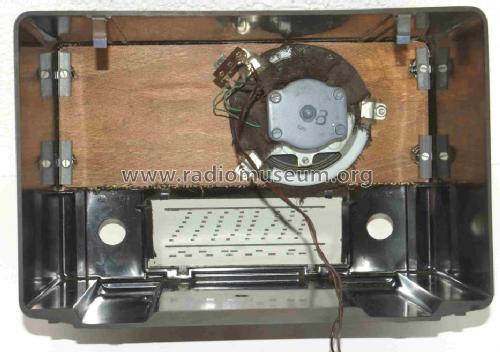

542BK ; Telefunken (ID = 125771) Radio 542BK ; Telefunken (ID = 125772) Radio
542BK ; Telefunken (ID = 449715) Radio 542BK ; Telefunken (ID = 449716) Radio

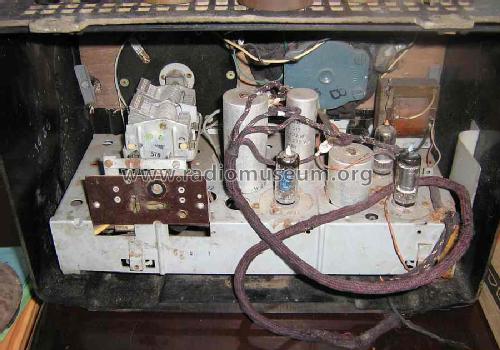

542BK ; Telefunken (ID = 449717) Radio 542BK ; Telefunken (ID = 922128) Radio
Use red slider bar for more.
542BK ; Telefunken (ID = 125770) Radio

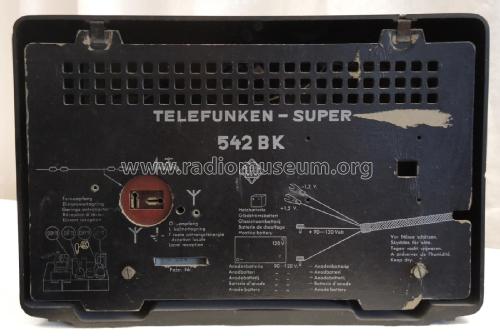

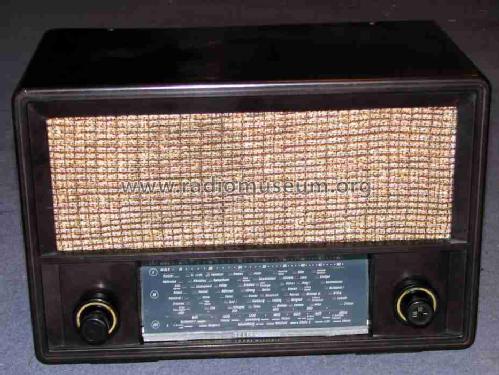

Telefunken: 542BK [Radio] ID = 125770 933x669
Select picture or schematic to display from thumbnails on the right and click for download.
For model 542BK (T542BK), Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DCH11 DF11 DAF11 DL11
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries / 2 & 4,5 & 90-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 542BK - Telefunken Deutschland TFK,
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 355 x 240 x 200 mm / 14 x 9.4 x 7.9 inch
Notes Chassis siehe auch 541BK und 54BK.
Fertigung Prag (Radiotechna) zeigt das Modell 542BK mit Oktalröhren der D-21er Serie.
Net weight (2.2 lb = 1 kg) 5.3 kg / 11 lb 10.8 oz (11.674 lb)
Source of data Radiokatalog Band 1, Ernst Erb

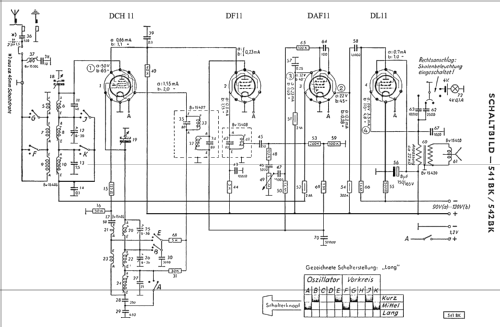

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung


All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3449 models, 3033 with images and 2025 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.





rmXorg
