55B (T55B)

55B ; Telefunken (ID = 7700) Radio

55B ; Telefunken (ID = 19891) Radio

55B ; Telefunken (ID = 353977) Radio
55B ; Telefunken (ID = 53866) Radio 55B ; Telefunken (ID = 55159) Radio
55B ; Telefunken (ID = 202701) Radio 55B ; Telefunken (ID = 202698) Radio
55B ; Telefunken (ID = 202703) Radio 55B ; Telefunken (ID = 708724) Radio
55B ; Telefunken (ID = 255362) Radio 55B ; Telefunken (ID = 255364) Radio

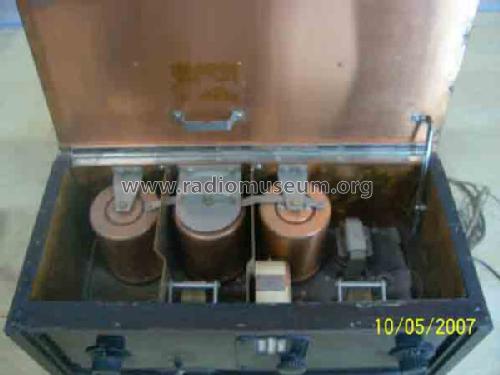

55B ; Telefunken (ID = 255366) Radio 55B ; Telefunken (ID = 709600) Radio
Use red slider bar for more.
55B ; Telefunken (ID = 53866) Radio

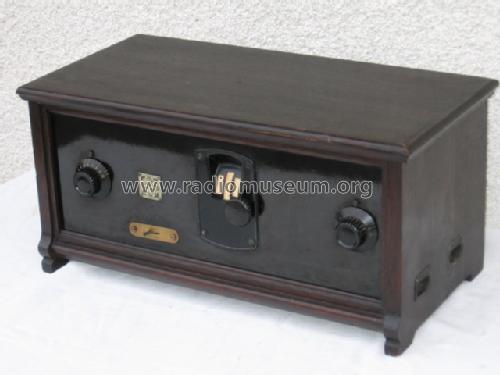

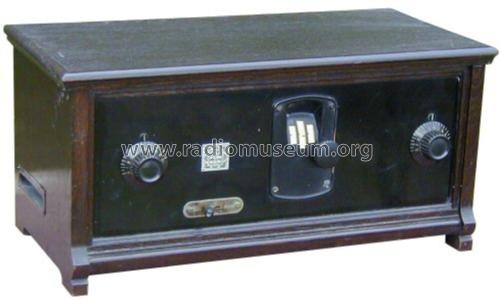

Telefunken: 55B [Radio] ID = 53866 503x302
Select picture or schematic to display from thumbnails on the right and click for download.
For model 55B (T55B), Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1930–1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: RE074n RE074n RE074n RE034 RE134 or RE304
Main principle TRF with regeneration; 2 Special; 2 AF stage(s); Neutrodyne
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 200 & 100 & 10,5 & 4 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 55B - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 500 x 250 x 250 mm / 19.7 x 9.8 x 9.8 inch
Notes wie Siemens Rfe 24
Price in first year of sale 140.00 RM !
Collectors' prices
Source of data Katalog Radio-Zentrale Prohaska 1931/32 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + FS-Bestückungstabellen
Mentioned in Radio-Schnorr-Katalog Nr.53 1931/32
Literature/Schematics (1) Telefunken Werkstattbuch
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
