633W ; Telefunken (ID = 3179) Radio
Telefunken: 633W [Radio] ID = 3179 831x486
Select picture or schematic to display from thumbnails on the right and click for download.
For model 633W (T633W), Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: AH1 AF7 AL4 AZ1
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); 1 Special; 1 AF stage(s); Anode bend detection
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 4 W (unknown quality)
from Radiomuseum.org Model: 633W - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 565 x 290 x 310 mm / 22.2 x 11.4 x 12.2 inch
Net weight (2.2 lb = 1 kg) 15.3 kg / 33 lb 11.2 oz (33.7 lb)
Price in first year of sale 239.00 RM
Collectors' prices
Source of data HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb

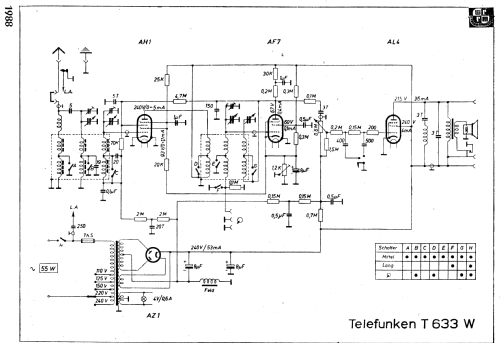

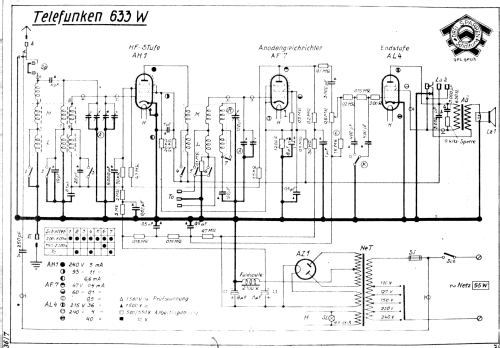

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Historische Radios (1-5) = zur Verknüpfung mit Modellseiten
Picture reference Eine Abbildung findet sich im Doppelband "Radio von gestern"
