Wechselstrom-Super 648W
Use red slider bar for more.

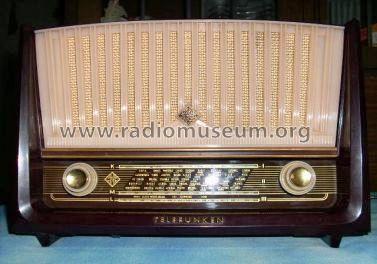

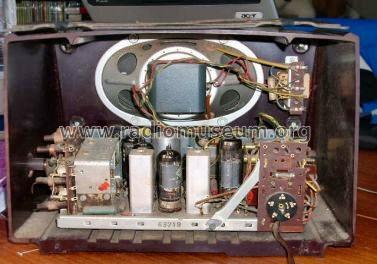

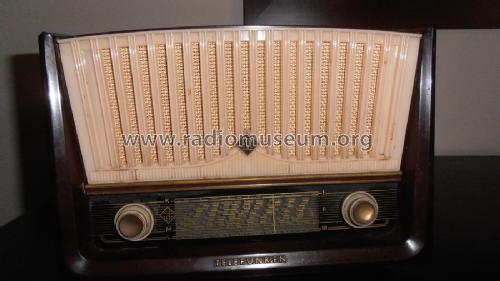

Telefunken: Wechselstrom-Super 648W [Radio] ID = 377604 377x264
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1957 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 4: ECH81 EBF89 ECL82 EZ80 |
|---|
| Main principle | Super-Heterodyne (Super in general); ZF/IF 460 kHz; 2 AF stage(s); Export model |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 100; 118; 150; 200; 230 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | |
| from Radiomuseum.org | Model: Wechselstrom-Super 648W - Telefunken Deutschland TFK, |
| Material | Bakelite case |
| Shape | Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only). |
| Dimensions (WHD) | 295 x 210 x 178 mm / 11.6 x 8.3 x 7 inch |
| Collectors' prices | |

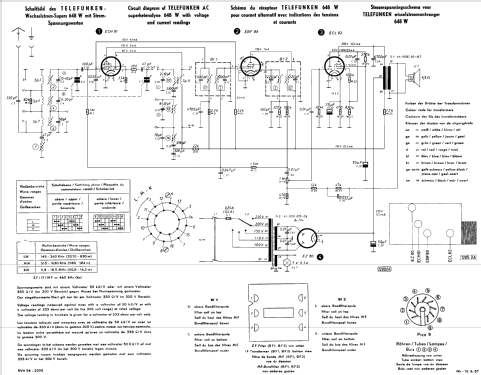

| Literature/Schematics (1) | -- Schematic |
Model page created by Beat Rechsteiner. See "Data change" for further contributors.
All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3401 models, 2964 with images and 1956 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
