653GW

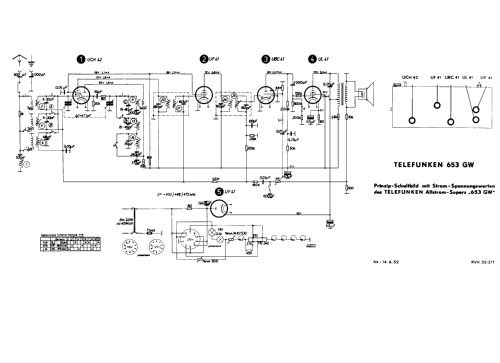

653GW; Telefunken (ID = 717669) Radio

653GW; Telefunken (ID = 717672) Radio
653GW; Telefunken (ID = 351576) Radio 653GW; Telefunken (ID = 351579) Radio
653GW; Telefunken (ID = 351578) Radio 653GW; Telefunken (ID = 769592) Radio
653GW; Telefunken (ID = 1365412) Radio
Use red slider bar for more.
653GW; Telefunken (ID = 351576) Radio
Telefunken: 653GW [Radio] ID = 351576 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 653GW, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 653GW - Telefunken Deutschland TFK,
Notes Eyxportmodell. ZF 452-468-472 KHz. KW 16.2 - 50 m, MW, LW 150 - 375 kHz.
Collectors' prices
Source of data -- Schematic

Model page created by Antonio Barros-Regada. See "Data change" for further contributors.
