Export Benelux 657GW (T657GW) Hochformat

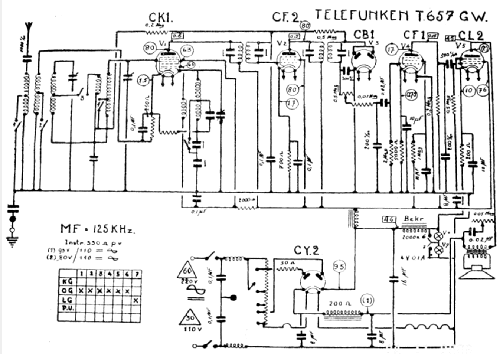

Export Benelux 657GW ; Telefunken (ID = 272885) Radio
Export Benelux 657GW ; Telefunken (ID = 271759) Radio Export Benelux 657GW ; Telefunken (ID = 271760) Radio
Export Benelux 657GW ; Telefunken (ID = 271762) Radio Export Benelux 657GW ; Telefunken (ID = 271761) Radio
Use red slider bar for more.
Export Benelux 657GW ; Telefunken (ID = 271759) Radio
Telefunken: Export Benelux 657GW [Radio] ID = 271759 580x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Export Benelux 657GW (T657GW) Hochformat, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1934 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: CK1 CF2 CB1 CF1 CL2 CY2
Main principle Superheterodyne (common); ZF/IF 125 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Export Benelux 657GW [Hochformat] - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 380 x 430 x 230 mm / 15 x 16.9 x 9.1 inch
Notes Propellerskala hinter dekorativer Messingblende.
Price in first year of sale 230.00 f
Literature/Schematics (1) Staleman Vademecum

Model page created by Ralf Birkenkampf. See "Data change" for further contributors.
