Allegro Stereo 101; Telefunken (ID = 1734633) Radio

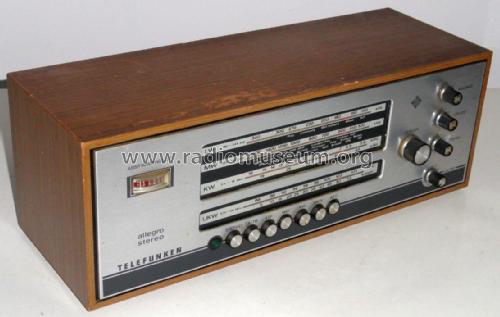

Telefunken: Allegro Stereo 101 [Radio] ID = 1734633 1110x705
Select picture or schematic to display from thumbnails on the right and click for download.
For model Allegro Stereo 101, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1968/1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 20:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Allegro Stereo 101 - Telefunken Deutschland TFK,
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 465 x 165 x 170 mm / 18.3 x 6.5 x 6.7 inch
Notes Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 4 W.
Net weight (2.2 lb = 1 kg) 6.2 kg / 13 lb 10.5 oz (13.656 lb)
External source of data erb
Source of data Handbuch VDRG 1968/1969
