For model Allegro Hi-Fi Stereo 5083W, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
From Canadian e-Bay seller 'leverwork'.

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1962 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EF89 EABC80 EM84 ECC83 EL84 ECL82
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; Export model
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 115; 230 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Allegro Hi-Fi Stereo 5083W - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 22.5 x 13.7 x 8.75 inch / 572 x 348 x 222 mm

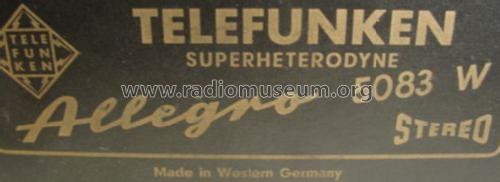

Notes Telefunken Superheterodyne Allegro Hi-Fi Stereo 5083 W;
US Export version, FM up to 108 MHz,
SW1: 2.15 - 7 MHz,
SW2: 6.9 - 22.5 MHz,
bass & treble control, sound equalizer buttons, tuning indicator tube, built-in antenna, DIN (Deutsche Industrie Norm) terminals, best stereo operation with external speaker box and optional balance control for stereo tape and phono sources only, made in Germany.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
