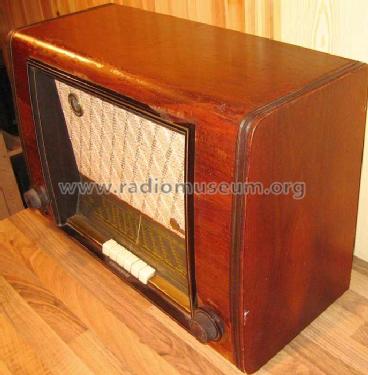

Andante S; Telefunken (ID = 2298608) Radio
Telefunken: Andante S [Radio] ID = 2298608 1400x1072
Select picture or schematic to display from thumbnails on the right and click for download.
For model Andante S W, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1952–1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF85 EC92 ECH81 EF41 EM11 EABC80 EL41
Semiconductors (the count is only for transistors) B250C90
Main principle Superheterodyne (common); ZF/IF 452 or 472/10700 kHz
Tuned circuits 8 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 220, 240 Volt
Loudspeaker 2 Loudspeakers / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: Andante S [W] - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 605 x 415 x 260 mm / 23.8 x 16.3 x 10.2 inch
Notes

Die EF85 arbeitet für UKW als abgestimmte HF-Vorstufe, bei AM hingegen als geregelte 1. ZF-Stufe. Regelbare Bandbreite im 2. AM-ZF-Filter.

Net weight (2.2 lb = 1 kg) 12.8 kg / 28 lb 3.1 oz (28.194 lb)
Price in first year of sale 399.00 DM
External source of data Erb
Source of data Kat.d.Rundf.GrossH.1953/54
Literature/Schematics (1) -- Schematic
