Bajazzo 52; Telefunken (ID = 2033631) Radio

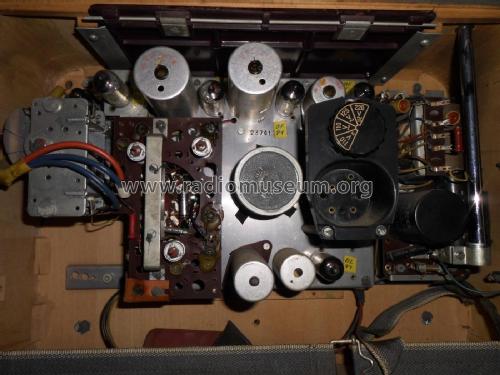

Telefunken: Bajazzo 52 [Radio] ID = 2033631 1400x1055
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bajazzo 52, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: DK92 DF91 DF91 DAF91 DL94
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 472 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Line / Batteries (any type) / AC/DC 220 / 7,5 & 110 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: Bajazzo 52 - Telefunken Deutschland TFK,
Material Bakelite case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 385 x 275 x 150 mm / 15.2 x 10.8 x 5.9 inch
Notes Anzapf-Selenstabilisator zur Konstanthaltung der Heizspannung. Vorgesehen für nachträglichen Einbau einer Teleskop-Antenne.
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 314.00 DM
Source of data Kat.d.Rundf.GrossH.1952/53 / Radiokatalog Band 1, Ernst Erb
