• Anno
  • 1966/1967
  • Categoria
  • Radio (o sintonizzatore del dopoguerra WW2)
  • Radiomuseum.org ID
  • 3962

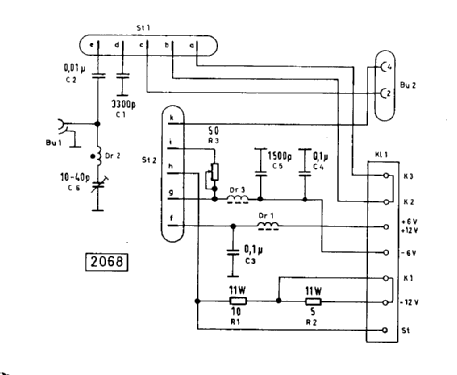

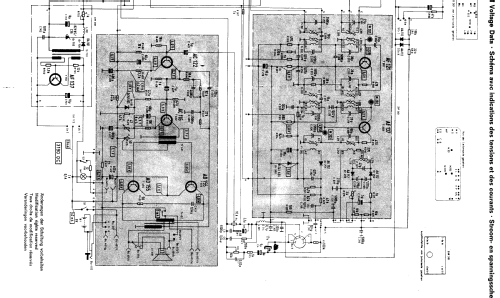

Clicca sulla miniatura dello schema per richiederlo come documento gratuito.

 Specifiche tecniche

  • Numero di transistor
  • 11
  • Principio generale
  • Supereterodina (in generale); ZF/IF 460/10700 kHz
  • N. di circuiti accordati
  • 7 Circuiti Mod. Amp. (AM)     12 Circuiti Mod. Freq. (FM)
  • Gamme d'onda
  • Onde medie (OM), lunghe (OL), corte (OC) e MF (FM).
  • Particolarità
  • Telecomando (con o senza filo)
  • Tensioni di funzionamento
  • Batterie / presa di alimentazione supplementare / D: 6 x 1.5 / DC: 9 Volt
  • Altoparlante
  • AP magnetodinamico ellittico (magnete permanente e bobina mobile).
  • Potenza d'uscita
  • 2.5 W (qualità ignota)
  • Materiali
  • Pelle / stoffa / plastica ma con altro materiale sottostante
  • Radiomuseum.org

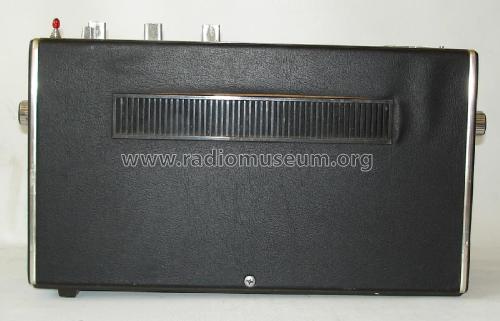

  • Modello: Bajazzo de Luxe 101 - Telefunken Deutschland TFK,
  • Forma
  • Apparecchio portatile > 20 cm (senza la necessità di una rete)
  • Dimensioni (LxAxP)
  • 320 x 190 x 90 mm / 12.6 x 7.5 x 3.5 inch
  • Annotazioni

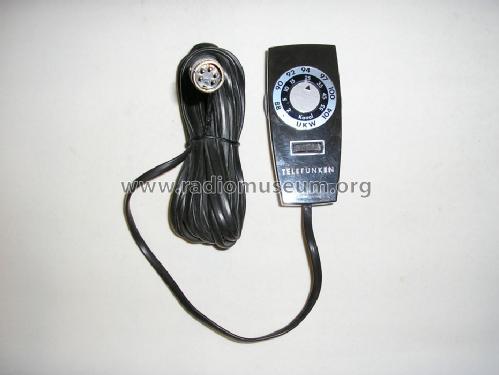

  • 3 UKW-Festsendertasten; Fernbedienung für UKW-Senderwahl und Lautstärkeregelung. Betrieb im Auto über Autohalterung aus 6-V- oder 12-V-Autobatterie, dann NF-Ausgangsleistung 5 W; Netzbetrieb mit zusätzlichem Netzteil möglich.

    Wellenbereiche:

    • UKW 87.5 - 104 MHz
    • KW 5.9 - 15.5 MHz
    • MW 520 - 1620 kHz
    • LW 150 - 340 kHz

    7 Drucktasten: UKW, KW, MW, LW, Autobetrieb, UKW-Abstimmautomatik, Skalen-Momentbeleuchtung. Feineinstellung im Kurzwellenbereich mithilfe des UKW-Drehknopfs bei aktivierter KW-Taste.

    Antennen: klappbare und schwenkbare Teleskopantenne für UKW und Kurzwellen, 7 Segmente, 80 cm; besonders lange integrierte Ferritantenne für Mittel- und Langwellen.

    Anschlüsse:

    • Buchse für Außenantenne, für UKW und KW
    • Buchse für Erde
    • Zwergsteckdose für Tonbandgeräte-Aufnahme/Wiedergabe und Schallplattenwiedergabe
    • konzentrische 3,5-mm-Buchse für Außenlautsprecher oder Kopfhörer
    • Buchse fürNetzteil
    • Buchsenplatte für Autobetrieb.

    Elliptischer Lautsprecher, 7,5 × 13 cm.

    Metallgriff, außen mit Kunststoff (Leder?) überzogen, mit vollem Verstellweg.

  • Peso netto
  • 3.2 kg / 7 lb 0.8 oz (7.048 lb)
  • Prezzo nel primo anno
  • 232.00 DM
