Bajazzo de luxe 201 holzdesign

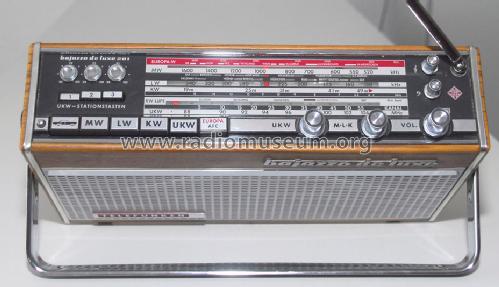

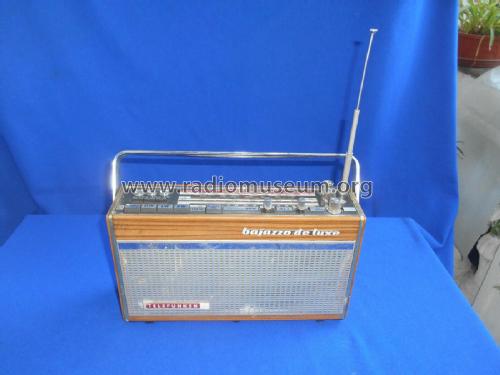

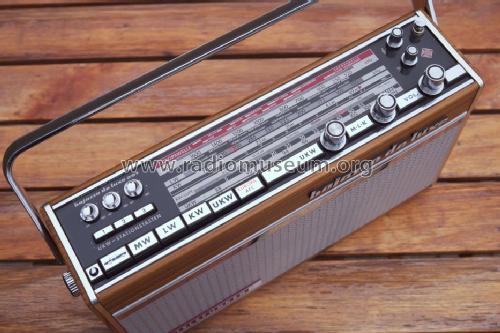

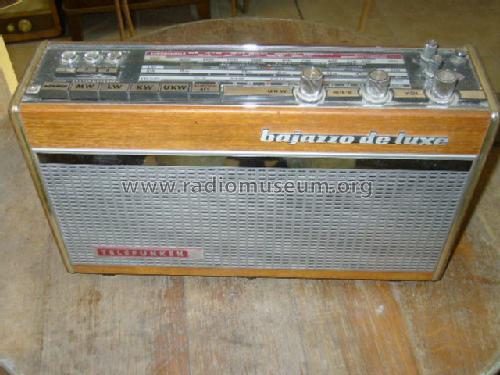

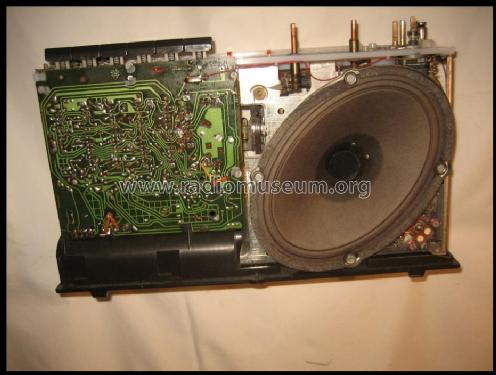

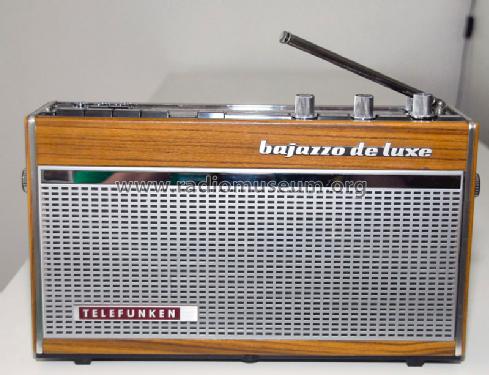

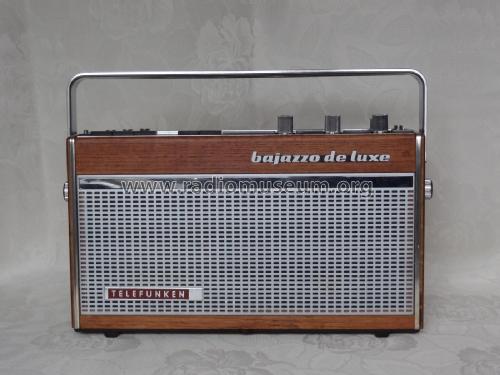

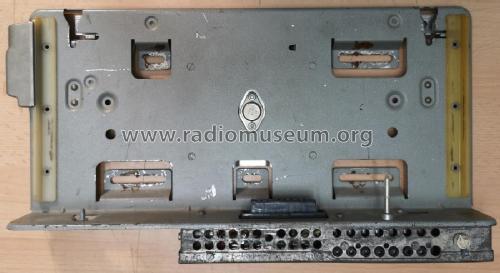

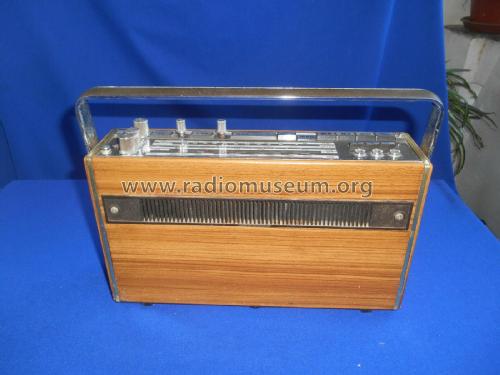

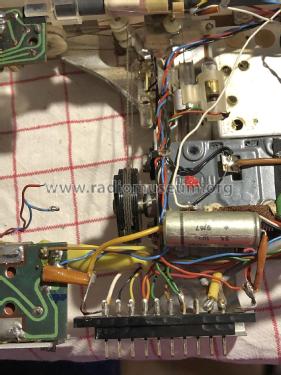

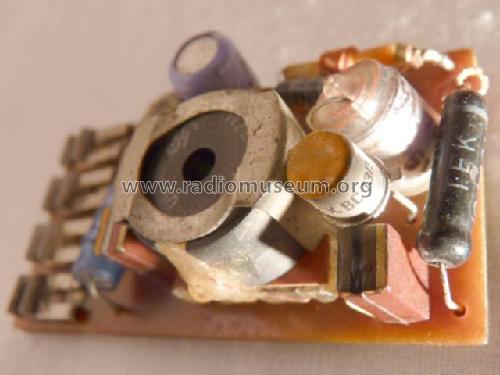

Telefunken: Bajazzo de luxe 201 [Radio] ID = 1501439 933x622
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1967/1968 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 11: AF106 AF121 AF136 AF137 AF136 AF121 AF137 AC122 AC116 AD155 AD155 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 460/10700 kHz |
|---|---|
| Tuned circuits | 7 AM circuit(s) 9 FM circuit(s) |
| Wave bands | Broadcast, Long Wave, Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | Dry Batteries / 5× 1,5 (Mono) Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | 2.5 W (unknown quality) |
| from Radiomuseum.org | Model: Bajazzo de luxe 201 [holzdesign] - Telefunken Deutschland TFK, |
| Material | Leather / canvas / plastic - over other material |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 320 x 190 x 90 mm / 12.6 x 7.5 x 3.5 inch |
| Notes | Betrieb im Auto über Autohalterung aus 6-V- oder 12-V-Autobatterie; Ausgangsleistung bei Autobetrieb: 5 W. Netzbetrieb mit zusätzlichem Netzteil möglich. Diese Radios wurden neben anderen Varianten sowohl in "Holzdesign" aus auch in "Echtholz" gebaut. |
| Net weight (2.2 lb = 1 kg) | 3.1 kg / 6 lb 13.3 oz (6.828 lb) |
| Price in first year of sale | 279.00 DM |
| Source of data | Handbuch VDRG 1967/1968 / Radiokatalog Band 1, Ernst Erb |

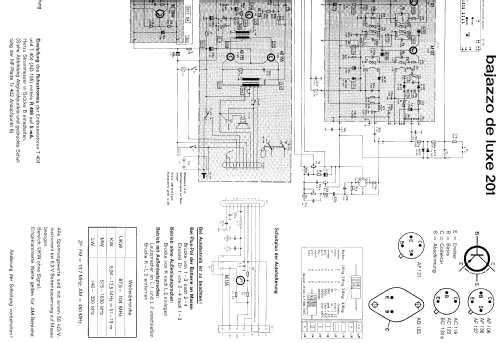

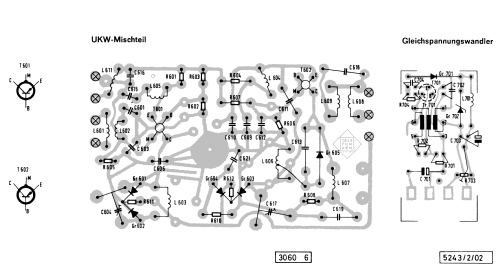

| Literature/Schematics (1) | -- Original-techn. papers. |
