For model Bajazzo U 1954, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: DC90 DF91 DK92 DF91 DF91 DAF91 DL94
Semiconductors (the count is only for transistors) OA172 or. RL231 OA172 or. RL231
Main principle Super-Heterodyne (Super in general); ZF/IF 452/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / AC/DC 110; 220 / AC 110; 125; 220 / 90 & 12 Volt

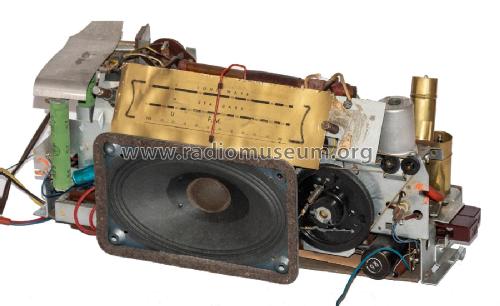

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.27 W (max.)
from Radiomuseum.org Model: Bajazzo U 1954 - Telefunken Deutschland TFK,

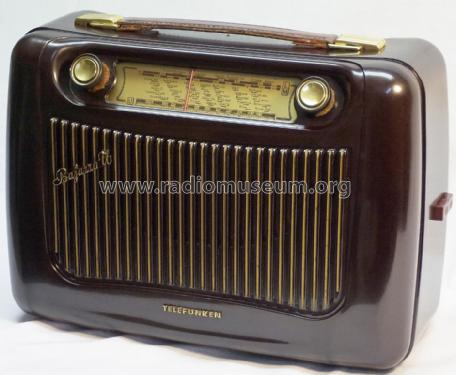

Material Bakelite case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 330 x 235 x 143 mm / 13 x 9.3 x 5.6 inch
Notes

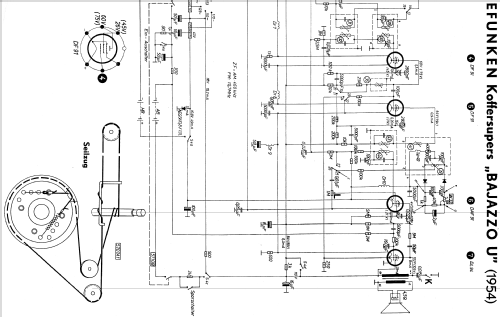

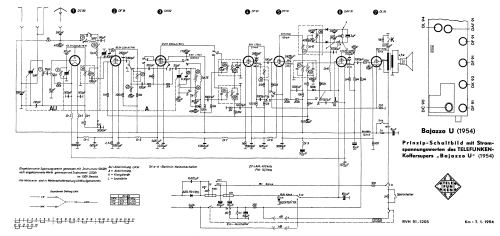

FM-Demodulation: Ratiodetektor mit 2 Germanium-Dioden.

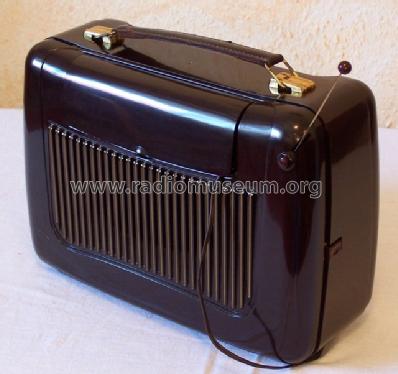

Ferritantenne für MW/LW, 60 cm Stahlband-Antenne für UKW.
Sparschalter zur Reduzierung der Anodenspannung für längere Betriebszeit der Anodenbatterie.

Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 269.00 DM
Collectors' prices
Source of data Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 1, Ernst Erb
Mentioned in -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
