Banjo automatic 105

Banjo automatic 105; Telefunken (ID = 212457) Radio

Banjo automatic 105; Telefunken (ID = 212458) Radio

Banjo automatic 105; Telefunken (ID = 212459) Radio

Banjo automatic 105; Telefunken (ID = 212460) Radio

Banjo automatic 105; Telefunken (ID = 212456) Radio

Banjo automatic 105; Telefunken (ID = 1956392) Radio

Banjo automatic 105; Telefunken (ID = 1956393) Radio

Banjo automatic 105; Telefunken (ID = 1956394) Radio

Banjo automatic 105; Telefunken (ID = 1956395) Radio

Banjo automatic 105; Telefunken (ID = 1956396) Radio
Banjo automatic 105; Telefunken (ID = 302685) Radio Banjo automatic 105; Telefunken (ID = 302686) Radio
Banjo automatic 105; Telefunken (ID = 1172) Radio Banjo automatic 105; Telefunken (ID = 302690) Radio
Banjo automatic 105; Telefunken (ID = 485067) Radio Banjo automatic 105; Telefunken (ID = 532272) Radio
Banjo automatic 105; Telefunken (ID = 532273) Radio Banjo automatic 105; Telefunken (ID = 532274) Radio
Banjo automatic 105; Telefunken (ID = 532275) Radio Banjo automatic 105; Telefunken (ID = 532276) Radio
Use red slider bar for more.
Banjo automatic 105; Telefunken (ID = 302685) Radio
Telefunken: Banjo automatic 105 [Radio] ID = 302685 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Banjo automatic 105, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1967–1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF106 AF121 AF121 AF136 AF137 2N4062 2N3704 AC178 AC179 BA124 AA112 BZY87
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Banjo automatic 105 - Telefunken Deutschland TFK,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 250 x 150 x 75 mm / 9.8 x 5.9 x 3 inch
Notes

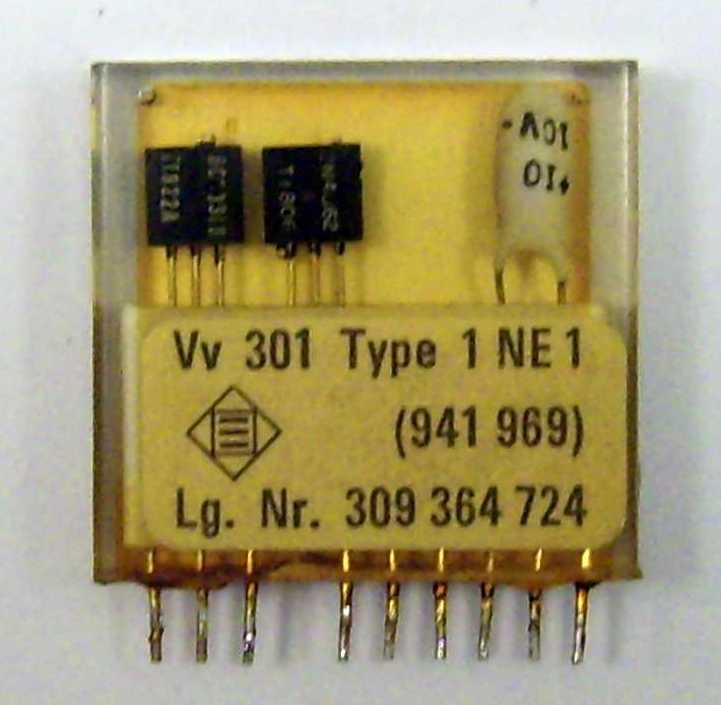

Telefunken Banjo Automatic 105 ist technisch baugleich zu Saba Transcontinent Automatic EK. NF-Vorverstärker in Dickfilm-Technik (02F). Netzbetrieb mit zusätzlichem Netzteil möglich.

Collectors' prices
Source of data Handbuch VDRG 1967/1968 / Radiokatalog Band 1, Ernst Erb
Mentioned in Handbuch VDRG 1968/1969
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
