• Year
  • 1954
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 109432

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • AC/DC-set / 110-125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

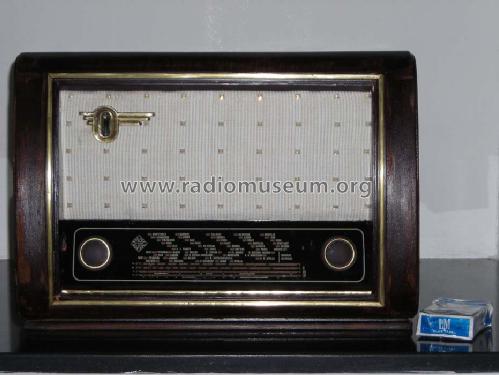

  • Model: Barcarola II U-1476 - Telefunken Radiotécnica
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 390 x 270 x 170 mm / 15.4 x 10.6 x 6.7 inch
  • Notes
  • Telefunken Radiotécnica Ibérica; Barcarola II (2) U-1476

    Banda/range 1 : 510 - 1500 kHz
    Banda/range 2 : 520 - 1800 kHz
    Banda/range 3 : 5,4 - 11 MHz
    Banda/range 4 : 10,8 - 20,2 MHz

    Piloto de 125V 10W

  • Net weight (2.2 lb = 1 kg)
  • 3.8 kg / 8 lb 5.9 oz (8.37 lb)
  • Price in first year of sale
  • 2,595.00 Pts.
  • Mentioned in
  • -- Original prospect or advert (Novedades Científicas Telefunken 1903-1954)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
