Batterie Gross-Super 539B (T539B)

Batterie Gross-Super 539B ; Telefunken; Wien (ID = 7686) Radio

Batterie Gross-Super 539B ; Telefunken; Wien (ID = 7687) Radio

Batterie Gross-Super 539B ; Telefunken; Wien (ID = 399110) Radio

Batterie Gross-Super 539B ; Telefunken; Wien (ID = 399111) Radio

Batterie Gross-Super 539B ; Telefunken; Wien (ID = 399112) Radio

Batterie Gross-Super 539B ; Telefunken; Wien (ID = 399113) Radio
Batterie Gross-Super 539B ; Telefunken; Wien (ID = 2497) Radio
Use red slider bar for more.
Batterie Gross-Super 539B ; Telefunken; Wien (ID = 2497) Radio

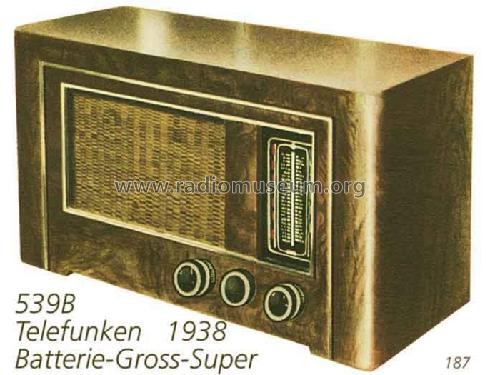

Telefunken; Wien: Batterie Gross-Super 539B [Radio] ID = 2497 681x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Batterie Gross-Super 539B (T539B), Telefunken; Wien

Country:  Austria
Manufacturer / Brand:  Telefunken; Wien
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: KK2 KF3 KBC1 KC3 KDD1
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries / 130+2 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Batterie Gross-Super 539B - Telefunken; Wien
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 612 x 350 x 235 mm / 24.1 x 13.8 x 9.3 inch
Price in first year of sale 265.00 RM
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange + Schenk
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
