Bayreuth 654GSK (T654GSK)

Bayreuth 654GSK ; Telefunken (ID = 721441) Radio

Bayreuth 654GSK ; Telefunken (ID = 721440) Radio

Bayreuth 654GSK ; Telefunken (ID = 719677) Radio

Bayreuth 654GSK ; Telefunken (ID = 719678) Radio

Bayreuth 654GSK ; Telefunken (ID = 721442) Radio

Bayreuth 654GSK ; Telefunken (ID = 7741) Radio
Bayreuth 654GSK ; Telefunken (ID = 157020) Radio Bayreuth 654GSK ; Telefunken (ID = 157021) Radio
Bayreuth 654GSK ; Telefunken (ID = 157022) Radio Bayreuth 654GSK ; Telefunken (ID = 1110) Radio
Bayreuth 654GSK ; Telefunken (ID = 1508552) Radio Bayreuth 654GSK ; Telefunken (ID = 1769826) Radio
Use red slider bar for more.
Bayreuth 654GSK ; Telefunken (ID = 157020) Radio
Telefunken: Bayreuth 654GSK [Radio] ID = 157020 462x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bayreuth 654GSK (T654GSK), Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: RENS1834 RENS1824 RENS1834 REN1826 RENS1823d RENS1823d EU
Main principle Superhet with RF-stage; ZF/IF 132 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (perh.Changer)
Power type and voltage Direct Current supply (DC) / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Bayreuth 654GSK - Telefunken Deutschland TFK,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 560 x 980 x 500 mm / 22 x 38.6 x 19.7 inch
Price in first year of sale 690.00 RM
Source of data Radio-Katalog Fricke 1934/35 / Radiokatalog Band 1, Ernst Erb

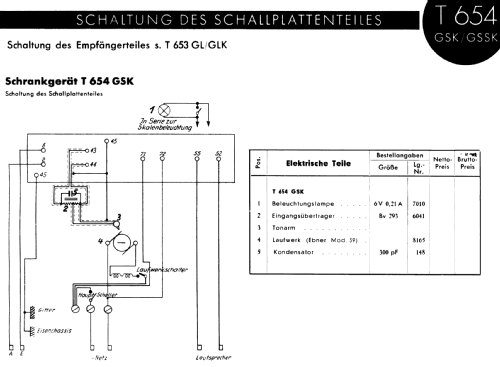

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3425 models, 2993 with images and 1974 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
