D9A

D9A; Telefunken (ID = 2050997) Microphone/PU D9A; Telefunken (ID = 2050996) Microphone/PU
D9A; Telefunken (ID = 2050998) Microphone/PU D9A; Telefunken (ID = 2050999) Microphone/PU
D9A; Telefunken (ID = 518653) Microphone/PU D9A; Telefunken (ID = 582579) Microphone/PU
D9A; Telefunken (ID = 582580) Microphone/PU D9A; Telefunken (ID = 582581) Microphone/PU
D9A; Telefunken (ID = 912042) Microphone/PU D9A; Telefunken (ID = 912044) Microphone/PU
Use red slider bar for more.
D9A; Telefunken (ID = 2050997) Microphone/PU
Telefunken: D9A [Microphone/PU] ID = 2050997 1024x998
Select picture or schematic to display from thumbnails on the right and click for download.
For model D9A, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1965 Category: Microphone or Pick-up element
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: D9A - Telefunken Deutschland TFK,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 55 x 80 x 40 mm / 2.2 x 3.1 x 1.6 inch

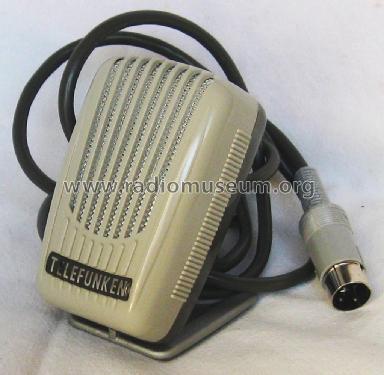

Notes Tischmikrofon mit dreipoligem DIN-Stecker.
Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Price in first year of sale 49.00 DM
Source of data - - Data from my own collection

Model page created by Felix Kreitlow. See "Data change" for further contributors.
