3-Watt-Allstromverstärker Ela V409/2

3-Watt-Allstromverstärker Ela V409/2; Telefunken (ID = 329446) Ampl/Mixer 3-Watt-Allstromverstärker Ela V409/2; Telefunken (ID = 329448) Ampl/Mixer
3-Watt-Allstromverstärker Ela V409/2; Telefunken (ID = 329447) Ampl/Mixer 3-Watt-Allstromverstärker Ela V409/2; Telefunken (ID = 329449) Ampl/Mixer
3-Watt-Allstromverstärker Ela V409/2; Telefunken (ID = 329450) Ampl/Mixer 3-Watt-Allstromverstärker Ela V409/2; Telefunken (ID = 329451) Ampl/Mixer
3-Watt-Allstromverstärker Ela V409/2; Telefunken (ID = 329452) Ampl/Mixer 3-Watt-Allstromverstärker Ela V409/2; Telefunken (ID = 329453) Ampl/Mixer
3-Watt-Allstromverstärker Ela V409/2; Telefunken (ID = 329454) Ampl/Mixer 3-Watt-Allstromverstärker Ela V409/2; Telefunken (ID = 708898) Ampl/Mixer
Use red slider bar for more.
3-Watt-Allstromverstärker Ela V409/2; Telefunken (ID = 329446) Ampl/Mixer

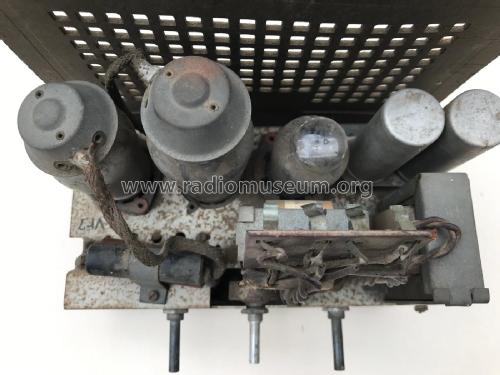

Telefunken: 3-Watt-Allstromverstärker Ela V409/2 [Ampl/Mixer] ID = 329446 762x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3-Watt-Allstromverstärker Ela V409/2, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1938 Category: Audio Amplifier or -mixer
Valves / Tubes 3: VF7 VL4 VY1
schematic requested
Main principle Audio-Amplification; 2 AF stage(s)
Wave bands - without
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 3 W (unknown quality)
from Radiomuseum.org Model: 3-Watt-Allstromverstärker Ela V409/2 - Telefunken Deutschland TFK,
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 230 x 215 x 160 mm / 9.1 x 8.5 x 6.3 inch
Notes Ausgangsimpedanz intern umschaltbar 15/4500 Ohm. Eingang symmetrisch erdfrei mittels Übertrager.
Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Collectors' prices
Mentioned in Der Rundfunk-Händler - Oktober 1941
Literature/Schematics (1) -- Original prospect or advert

Model page created by Bernhard Nagel. See "Data change" for further contributors.
