electronic FE278T

electronic FE278T; Telefunken (ID = 446798) Television

electronic FE278T; Telefunken (ID = 446800) Television
electronic FE278T; Telefunken (ID = 1093518) Television
Use red slider bar for more.
electronic FE278T; Telefunken (ID = 1093518) Television

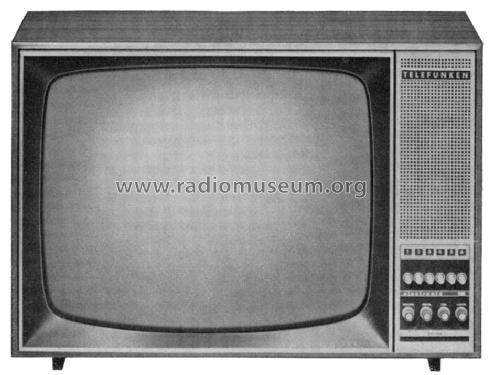

Telefunken: electronic FE278T [Television] ID = 1093518 933x715
Select picture or schematic to display from thumbnails on the right and click for download.
For model electronic FE278T, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Telefunkensprecher Heft 44 / 1968

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1969 Category: Television Receiver (TV) or Monitor
Valves / Tubes 9: EF183 PCL200 PL95 PCL85 ECH84 PL504 PY88 DY802 A59-12W/2
Semiconductors (the count is only for transistors) 12:
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: electronic FE278T - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 710 x 490 x 330 mm / 28 x 19.3 x 13 inch
Notes Empfangsbereich VHF/UHF.
Chassis 208.
Net weight (2.2 lb = 1 kg) 28 kg / 61 lb 10.8 oz (61.674 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
