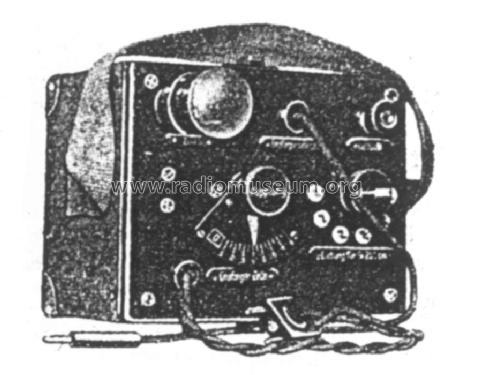

Telefunken: EZ203 [Radio] ID = 611765 893x700
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1918 ?? | Category: Broadcast Receiver - or past WW2 Tuner |
| Main principle | Crystal or Solid State Detector; none |
|---|---|
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | No Power needed |
| Loudspeaker | - For headphones or amp. |
| Power out | |
| from Radiomuseum.org | Model: EZ203 - Telefunken Deutschland TFK, |
| Material | Wooden case |
| Shape | Tablemodel, Box - most often with Lid (NOT slant panel). |
| Dimensions (WHD) | 190 x 170 x 150 mm / 7.5 x 6.7 x 5.9 inch |
| Notes | Zusatzgerät zur Erweiterung des Wellenbereiches zum Empfänger E170k. |
| Net weight (2.2 lb = 1 kg) | 2.350 kg / 5 lb 2.8 oz (5.176 lb) |
| Literature/Schematics (1) | Telefunken-Stationen und -Geräte, Anfang 1919 (das "Blaue Buch") |
Model page created by Nikolaus Löwe. See "Data change" for further contributors.
