FE170P electronic Ch= 209A

FE170P electronic Ch= 209A; Telefunken (ID = 449088) Television

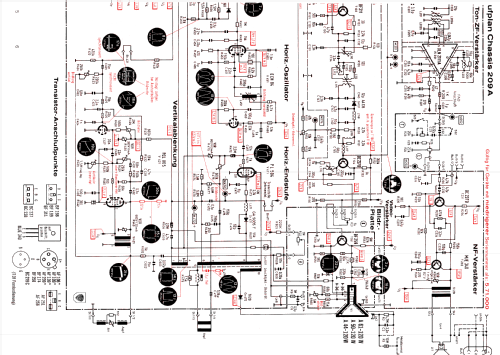

FE170P electronic Ch= 209A; Telefunken (ID = 449089) Television
FE170P electronic Ch= 209A; Telefunken (ID = 832203) Television FE170P electronic Ch= 209A; Telefunken (ID = 832205) Television
FE170P electronic Ch= 209A; Telefunken (ID = 832204) Television FE170P electronic Ch= 209A; Telefunken (ID = 449087) Television
Use red slider bar for more.
FE170P electronic Ch= 209A; Telefunken (ID = 832203) Television
Telefunken: FE170P electronic Ch= 209A [Television] ID = 832203 907x680
Select picture or schematic to display from thumbnails on the right and click for download.
For model FE170P electronic Ch= 209A, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1971/1972 Category: Television Receiver (TV) or Monitor
Valves / Tubes 4: ECH84 PCL805 PL504 A44-120W
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: FE170P electronic Ch= 209A - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Empfangsbereich VHF/UHF
2 Ausführungen: Holz hell-matt und weiß.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
