FE190P electronic Ch= 209A
Use red slider bar for more.

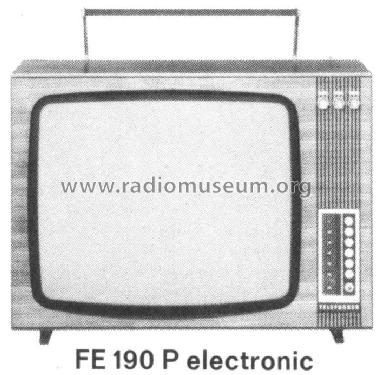

Telefunken: FE190P electronic Ch= 209A [Television] ID = 449090 700x693
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1971/1972 | Category: Television Receiver (TV) or Monitor | ||||
| Valves / Tubes | 4: ECH84 PCL805 PL504 A50-120W |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Wave Bands given in the notes. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | |
| from Radiomuseum.org | Model: FE190P electronic Ch= 209A - Telefunken Deutschland TFK, |
| Material | Wooden case |
| Shape | Tablemodel with Push Buttons. |
| Notes | Empfangsbereich VHF/UHF 2 Ausführungen: Holz hell-matt und weiß. |
| Literature/Schematics (1) | -- Original-techn. papers. |
Model page created by Wolfgang Bauer. See "Data change" for further contributors.
