• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1967

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 129767

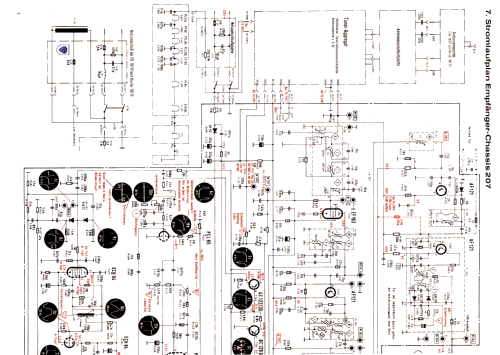

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• EF183 PCL200 PL95 PCL85 ECH84 PL504 PY88 DY802 A59-12W/2 or A59-23W

• Number of Transistors
• 11

• Semiconductors
• AF239 AF139 AF106 AF121 AF121 AC122 AF121 AF121 AC122 BC129 or. BC147 BC130 OA174 OA172 OA172 OA160 OA161 E30C5 OY1011

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

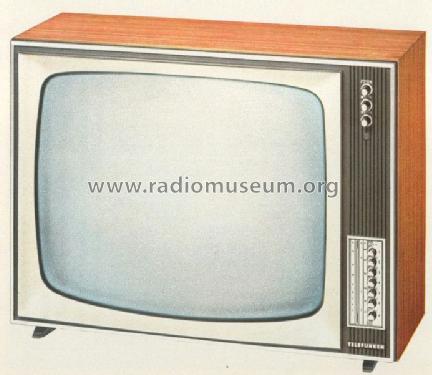

• Model: FE217T - Telefunken Deutschland TFK,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 650 x 490 x 370 mm / 25.6 x 19.3 x 14.6 inch

• Notes

• Empfangsbereich VHF/UHF.
  Chassis 207.

  Anschluss für Fernregler FR 7 (Regelung von Lautstärke und Helligkeit).

• Net weight (2.2 lb = 1 kg)
• 26 kg / 57 lb 4.3 oz (57.269 lb)

• Mentioned in
• -- Original-techn. papers. (FS-Service FS67-2217)

• Literature/Schematics (1)
• - - Manufacturers Literature (Katalog, Report 67)

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
