- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1963/1964
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 108629

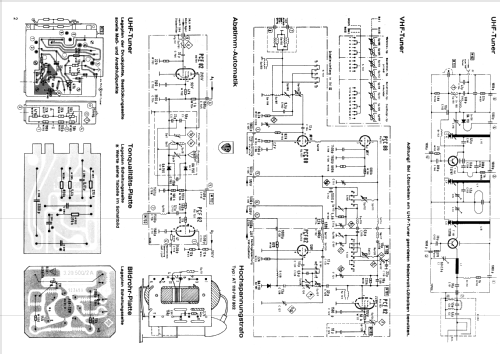

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Number of Transistors
- 2
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: FE243St - Telefunken Deutschland TFK,
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 860 x 910 x 470 mm / 33.9 x 35.8 x 18.5 inch
- Notes
- Röhren teilweise mehrfach
VHF/UHF. Technische Daten wie FE243T, jedoch Standgerät mit verschließbaren Jalousietüren.
- Net weight (2.2 lb = 1 kg)
- 44 kg / 96 lb 14.7 oz (96.916 lb)
- Price in first year of sale
- 1,319.00 DM
- Source of data
- Handbuch VDRG 1963/1964
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
