• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1972/1973

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 134220

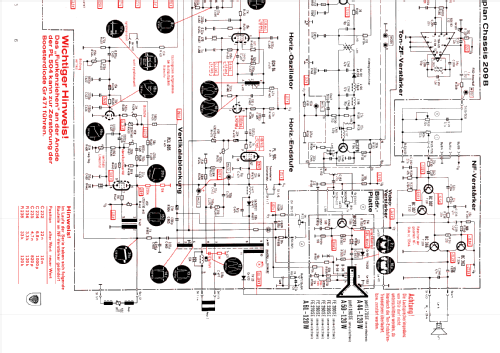

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH84 PCL805 PL504 A61-120W

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: FE260SE servo-electronic - Telefunken Deutschland TFK,

• Shape
• Tablemodel with Push Buttons.

• Notes

• Empfangsbereich VHF und UHF.
  Chassis 209B.

  2 verschiedene Tuner MT270D oder MT162S.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
