Filius 8H43GW

Filius 8H43GW; Telefunken (ID = 7505) Radio

Filius 8H43GW; Telefunken (ID = 767181) Radio

Filius 8H43GW; Telefunken (ID = 1183395) Radio

Filius 8H43GW; Telefunken (ID = 1914231) Radio

Filius 8H43GW; Telefunken (ID = 1914236) Radio
Filius 8H43GW; Telefunken (ID = 2331924) Radio Filius 8H43GW; Telefunken (ID = 2331925) Radio
Filius 8H43GW; Telefunken (ID = 2331926) Radio Filius 8H43GW; Telefunken (ID = 3447) Radio

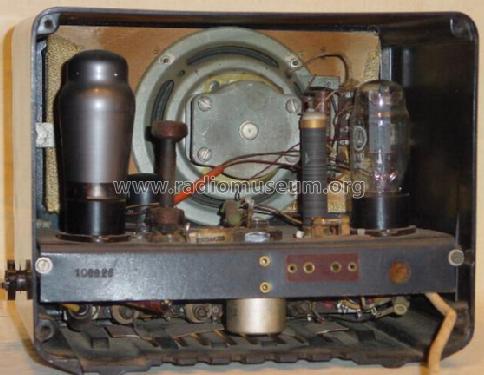

Filius 8H43GW; Telefunken (ID = 3449) Radio Filius 8H43GW; Telefunken (ID = 3448) Radio
Filius 8H43GW; Telefunken (ID = 1472365) Radio Filius 8H43GW; Telefunken (ID = 1472366) Radio
Use red slider bar for more.
Filius 8H43GW; Telefunken (ID = 2331924) Radio
Telefunken: Filius 8H43GW [Radio] ID = 2331924 1400x1055
Select picture or schematic to display from thumbnails on the right and click for download.
For model Filius 8H43GW, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:

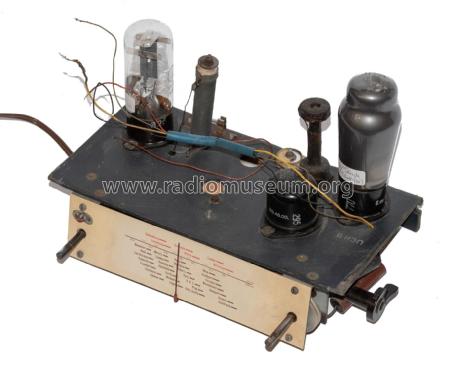

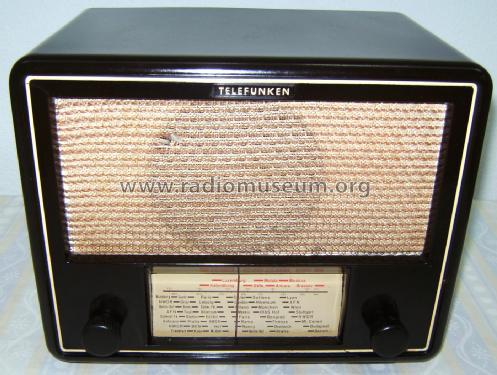

Telefunken Filius 8H43GW_Hauptansicht

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1948–1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: UCH11 UCL11 UY11
Main principle Superheterodyne (common); ZF/IF 472 kHz; Super, reaction, but not adjustable
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110, 125, 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Filius 8H43GW - Telefunken Deutschland TFK,
Material Bakelite case
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 260 x 210 x 170 mm / 10.2 x 8.3 x 6.7 inch
Notes Permeabilitätsabstimmung. Etwa 22000 Stück wurden gebaut.
Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)
Price in first year of sale 228.00 DM
Source of data -- Original prospect or advert / Radiokatalog Band 1, Ernst Erb

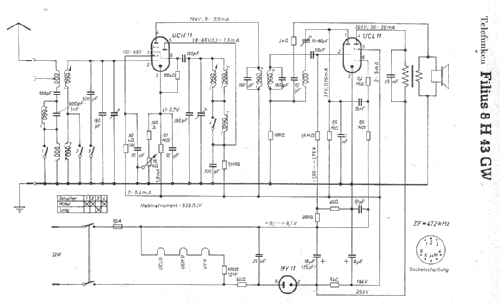

Circuit diagram reference Lange-Nowisch
Mentioned in Funkschau (4901)
Literature/Schematics (1) Funk-Technik (FT) (2/1949, S. 38, 39 /Bericht, Induktivitätsabstimmung)
Literature/Schematics (2) Funk-Technik (FT) (2/1949, S. 51, 52 / Daten und Schema)
Picture reference Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
