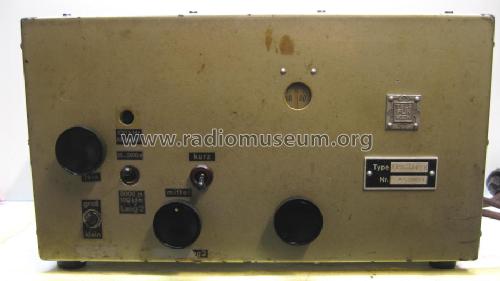

HF-Prüfgenerator EPS2aVIE
Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1938
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 143257
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Radio Frequency Amplification only
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: HF-Prüfgenerator EPS2aVIE - Telefunken Deutschland TFK,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 320 x 185 x 180 mm / 12.6 x 7.3 x 7.1 inch
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
