• Year
  • 1952–1954
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 19289

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Number of Transistors
  • Main principle
  • Superhet with RF-stage; ZF/IF 452 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6/12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
  • Material
  • Metal case
  • from Radiomuseum.org

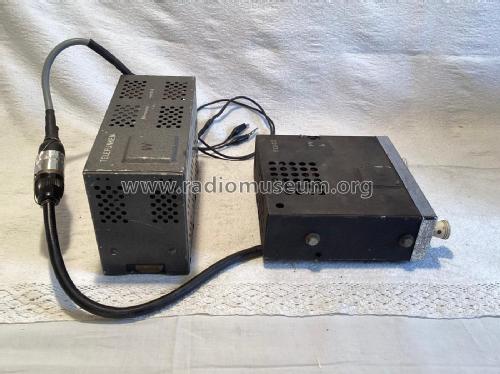

  • Model: ID53U - Telefunken Deutschland TFK,
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 175 x 60 x 175 mm / 6.9 x 2.4 x 6.9 inch
  • Notes
  • Telefunken ID53 (nicht 1D53) gab es in verschiedenen Ausführungen und mindestens während 2 Saisons, 1952 bis 1954. Beispiele sind ID53U, ID53U/S, ID53UK und ID53V.
  • Net weight (2.2 lb = 1 kg)
  • 4.8 kg / 10 lb 9.2 oz (10.573 lb)
  • Price in first year of sale
  • 298.00 DM
  • External source of data
  • Erb
