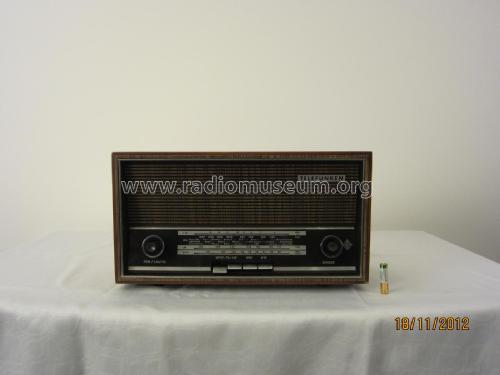

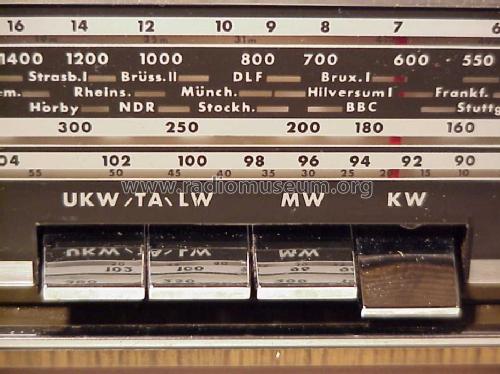

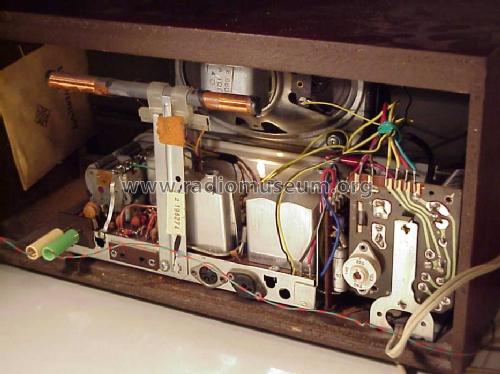

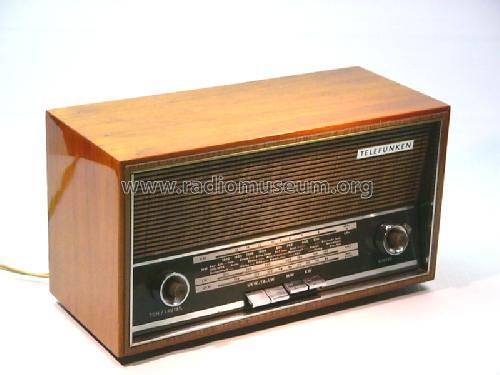

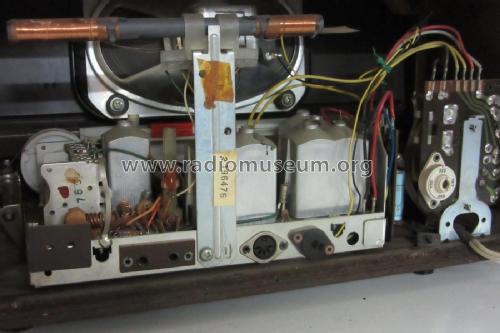

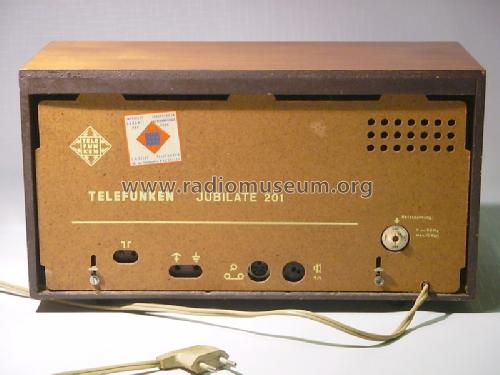

Telefunken: Jubilate 201 [Radio] ID = 99460 933x537

Select picture or schematic to display from thumbnails on the right and click for download.

For model Jubilate 201, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:

Germany

Manufacturer / Brand:

Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Year: 1967/1968

Category: Broadcast Receiver - or past WW2 Tuner

Semiconductors (the count is only for transistors)

9: AF106 AF121 AF121 AF138 AF137 AC122 AC116 AC117 AC175 AA112 AA112 AA112 AA112

Main principle	Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits	7 AM circuit(s) 10 FM circuit(s)
Wave bands	Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage	Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out	1.8 W (unknown quality)
from Radiomuseum.org	Model: Jubilate 201 - Telefunken Deutschland TFK,
Material	Wooden case
Shape	Tablemodel with Push Buttons.
Dimensions (WHD)	360 x 160 x 200 mm / 14.2 x 6.3 x 7.9 inch
Notes
Net weight (2.2 lb = 1 kg)	3.4 kg / 7 lb 7.8 oz (7.489 lb)
External source of data	erb
Source of data	Handbuch VDRG 1967/1968

All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3461 models, 3031 with images and 2007 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
