• Country
• Norway

• Manufacturer / Brand
• Telefunken El.-Gen.Aksjeselskap

• Year
• 1943

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 125109

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH11 EBF11 ECL11 AZ11 EM11

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-130; 145-160; 220-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch

• Material
• Wooden case

• from Radiomuseum.org

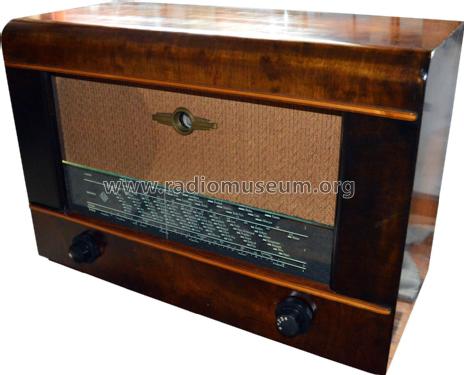

• Model: Juvel 3 - Telefunken El.-Gen.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 530 x 360 x 230 mm / 20.9 x 14.2 x 9.1 inch

• Price in first year of sale
• 355.00 NKr

• Mentioned in
• The Norwegian Historical Radio Society

• Author
• Model page created by Ernst Rykkje. See "Data change" for further contributors.
