- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1958–1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 4028
Telefunken

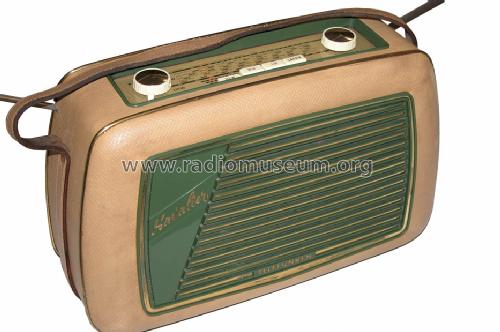

Bild aus ebay
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 110; 125; 150; 220 / 1, 5 & 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Kavalier - Telefunken Deutschland TFK,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 360 x 235 x 140 mm / 14.2 x 9.3 x 5.5 inch
- Net weight (2.2 lb = 1 kg)
- 5.7 kg / 12 lb 8.9 oz (12.555 lb)
- Price in first year of sale
- 299.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1958/59 / Radiokatalog Band 1, Ernst Erb
- Mentioned in
- HdB d.Rdf-& Ferns-GrH 1959/60
