Klangbox 2080

Klangbox 2080; Telefunken (ID = 2085019) Speaker-P
Klangbox 2080; Telefunken (ID = 111500) Speaker-P Klangbox 2080; Telefunken (ID = 111501) Speaker-P
Klangbox 2080; Telefunken (ID = 111502) Speaker-P Klangbox 2080; Telefunken (ID = 753994) Speaker-P
Klangbox 2080; Telefunken (ID = 1559728) Speaker-P Klangbox 2080; Telefunken (ID = 1564034) Speaker-P
Use red slider bar for more.
Klangbox 2080; Telefunken (ID = 111500) Speaker-P
Telefunken: Klangbox 2080 [Speaker-P] ID = 111500 933x479
Select picture or schematic to display from thumbnails on the right and click for download.
For model Klangbox 2080, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1970 ? Category: Loudspeaker, headphone or earphone
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 15 W (unknown quality)
from Radiomuseum.org Model: Klangbox 2080 - Telefunken Deutschland TFK,
Material Wooden case

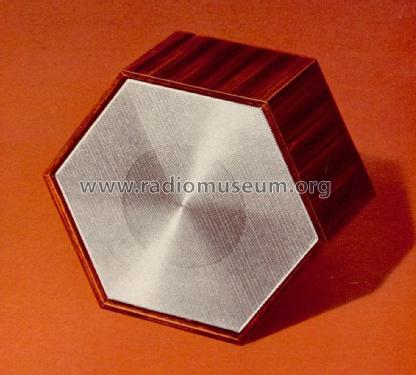

Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 230 x 230 x 145 mm / 9.1 x 9.1 x 5.7 inch
Notes 6 eckiges Gehäuse, Nennbelastbarkeit 10 Watt, Grenzbelastbarkeit 15 Watt, Impendance 4 Ohm, Gewicht bezieht sich auf eine Box
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)

Model page created by Peter Böhm. See "Data change" for further contributors.
