Kleinsuper 331WL/o (T331WL/o)

Kleinsuper 331WL/o ; Telefunken; Wien (ID = 718102) Radio

Kleinsuper 331WL/o ; Telefunken; Wien (ID = 718105) Radio

Kleinsuper 331WL/o ; Telefunken; Wien (ID = 7433) Radio

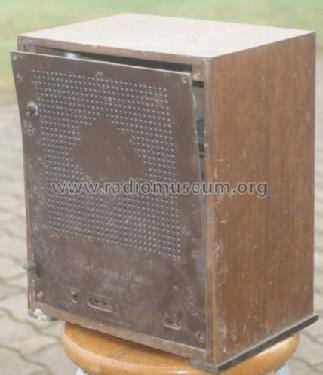

Kleinsuper 331WL/o ; Telefunken; Wien (ID = 1600050) Radio Kleinsuper 331WL/o ; Telefunken; Wien (ID = 1600054) Radio
Kleinsuper 331WL/o ; Telefunken; Wien (ID = 1600053) Radio Kleinsuper 331WL/o ; Telefunken; Wien (ID = 3948) Radio
Kleinsuper 331WL/o ; Telefunken; Wien (ID = 10359) Radio
Use red slider bar for more.
Kleinsuper 331WL/o ; Telefunken; Wien (ID = 1600050) Radio
Telefunken; Wien: Kleinsuper 331WL/o [Radio] ID = 1600050 443x518
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kleinsuper 331WL/o (T331WL/o), Telefunken; Wien:
ebay 171214353961, kydippe.

Country:  Austria
Manufacturer / Brand:  Telefunken; Wien
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RENS1264 RENS1284 RENS1374d RGN1054
Main principle Superheterodyne (common); ZF/IF 100 kHz; Super, reaction, but not adjustable
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Kleinsuper 331WL/o - Telefunken; Wien
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes nur 4 Kreise
Price in first year of sale 380.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

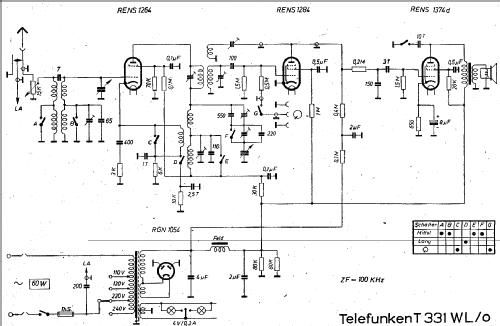

Circuit diagram reference Lange + Schenk


All listed radios etc. from Telefunken; Wien
Here you find 109 models, 95 with images and 79 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.





Forum contributions about this model
Telefunken; Wien: Kleinsuper 331WL/o
Threads: 1 | Posts: 1
Hits: 2018     Replies: 0
telefunken: 331WL/o
Gerhard Heigl
09.Oct.02
  1 orig.Preis 380 S

Telefunken; Wien: Kleinsuper 331WL/o
