• Year
  • 1935 ?
  • Category
  • RF (Radio Frequency-) Amplifier
  • Radiomuseum.org ID
  • 4366

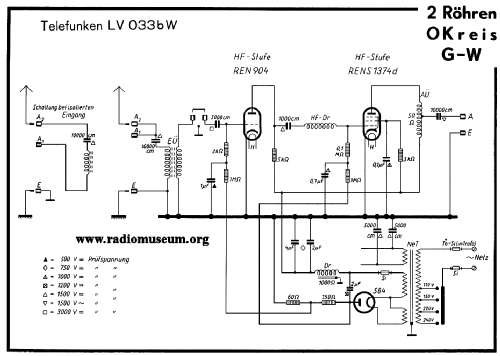

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • Radio Frequency Amplification only
  • Tuned circuits
  • 2 AM circuit(s)
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • from Radiomuseum.org
  • Model: LV033bW - Telefunken Deutschland TFK,
  • Notes
  • Antennen-Verstärker
  • Source of data
  • Radiokatalog Band 1, Ernst Erb
  • Circuit diagram reference
  • Lange-Nowisch
