For model Magnat CZ, Telefunken - Krajowe Zaklady, Warszawa:

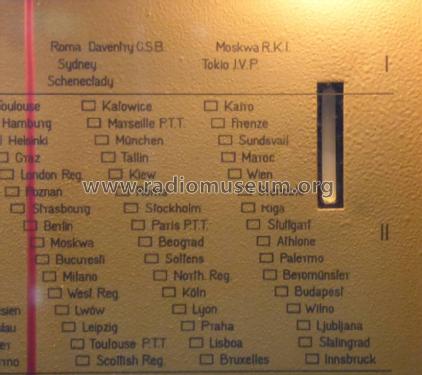

front view, in operation, dial background new spray painted

Country:  Poland
Manufacturer / Brand:  Telefunken - Krajowe Zaklady, Warszawa
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF7 ABC1 AL4 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 24 cm = 9.4 inch
Power out
from Radiomuseum.org Model: Magnat CZ - Telefunken - Krajowe Zaklady,
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 590 x 310 x 260 mm / 23.2 x 12.2 x 10.2 inch
Net weight (2.2 lb = 1 kg) 10.5 kg / 23 lb 2 oz (23.128 lb)
Price in first year of sale 590.00 zl
Source of data - - Data from my own collection
Mentioned in Zlote Lata Radia, Polen

Model page created by Andrzej Cieslak. See "Data change" for further contributors.
