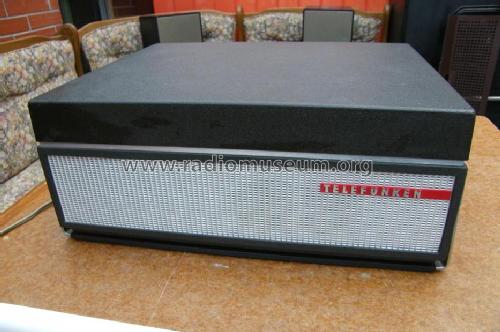

Magnetophon 201TS M-201TS

Magnetophon 201TS M-201TS; Telefunken (ID = 130052) R-Player

Magnetophon 201TS M-201TS; Telefunken (ID = 130053) R-Player

Magnetophon 201TS M-201TS; Telefunken (ID = 130057) R-Player

Magnetophon 201TS M-201TS; Telefunken (ID = 130058) R-Player

Magnetophon 201TS M-201TS; Telefunken (ID = 160714) R-Player
Magnetophon 201TS M-201TS; Telefunken (ID = 2011668) R-Player Magnetophon 201TS M-201TS; Telefunken (ID = 424509) R-Player
Magnetophon 201TS M-201TS; Telefunken (ID = 424507) R-Player Magnetophon 201TS M-201TS; Telefunken (ID = 424510) R-Player
Magnetophon 201TS M-201TS; Telefunken (ID = 424511) R-Player Magnetophon 201TS M-201TS; Telefunken (ID = 424504) R-Player
Magnetophon 201TS M-201TS; Telefunken (ID = 30289) R-Player Magnetophon 201TS M-201TS; Telefunken (ID = 1037992) R-Player
Magnetophon 201TS M-201TS; Telefunken (ID = 1037993) R-Player Magnetophon 201TS M-201TS; Telefunken (ID = 1037994) R-Player
Use red slider bar for more.
Magnetophon 201TS M-201TS; Telefunken (ID = 2011668) R-Player
Telefunken: Magnetophon 201TS M-201TS [R-Player] ID = 2011668 960x1105
Select picture or schematic to display from thumbnails on the right and click for download.
For model Magnetophon 201TS M-201TS, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1967–1970 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 8: AC116 AC117 AC122 AC122 AC124 AC150 AC175 BC130
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Magnetophon 201TS M-201TS - Telefunken Deutschland TFK,
Material Leather / canvas / plastic - over other material
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 395 x 160 x 310 mm / 15.6 x 6.3 x 12.2 inch
Notes Vierspur-Mono. Bandgeschwindigkeit: 9,5 cm/s; Spulen-Ø: 18 cm; Übertragungsbereich: 80-13000 Hz. Anschluss für automatischen Anrufbeantworter T104.
Es gibt einen Ersatzmotor von Telefunken.
Net weight (2.2 lb = 1 kg) 9.5 kg / 20 lb 14.8 oz (20.925 lb)
Collectors' prices
External source of data erb
Source of data Handbuch VDRG 1968/1969
