Magnetophon 302TS M302TS; Telefunken (ID = 303503) R-Player
Telefunken: Magnetophon 302TS M302TS [R-Player] ID = 303503 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Magnetophon 302TS M302TS, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1968–1973 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 14: AC150 AC122 AC122 AC122 AC122 AC117 AC117 AC122 AC188 AC122 AC188 AC122 AC188 BC148 or. BC130 or. BC108
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder

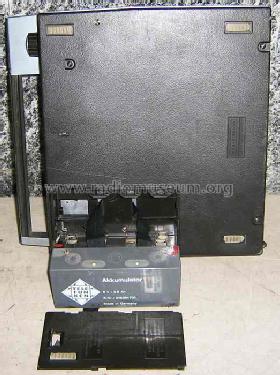

Power type and voltage Dry Batteries / 5 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Magnetophon 302TS M302TS - Telefunken Deutschland TFK,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 273 x 77 x 277 mm / 10.7 x 3 x 10.9 inch
Notes Vierspur-Mono; Bandgeschwindigkeiten: 4,75/9,5 cm/s; Spulen-Ø: 13 cm. Betrieb auch mit 6-V-Dryfit-Akku oder 6/12-V-Autobatterie. Netzbetrieb über Netz-Ladegerät.
Net weight (2.2 lb = 1 kg) 3.1 kg / 6 lb 13.3 oz (6.828 lb)
Price in first year of sale 248.00 DM
Collectors' prices
External source of data erb
Source of data Handbuch VDRG 1968/1969

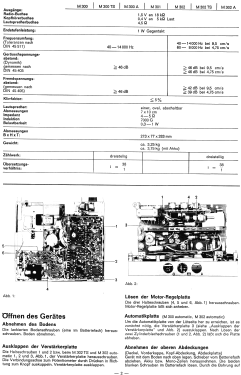

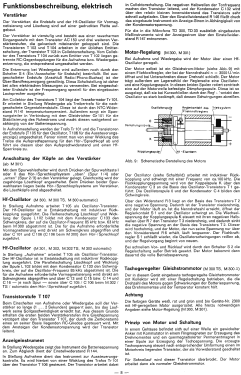

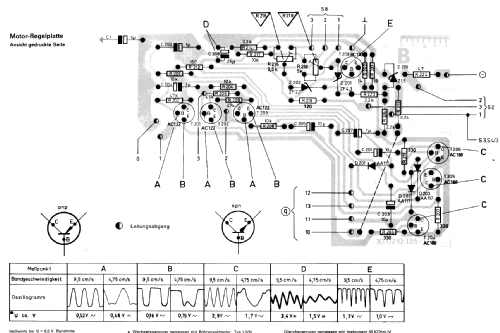

Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3396 models, 2956 with images and 1944 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
Telefunken: Magnetophon 302TS M302TS
Threads: 1 | Posts: 2
Hits: 1746     Replies: 1
telefunken: M302TS; Magnetophon 302TS
Marco Buriani
27.Aug.13
  1

qualcuno sa dirmi quali sono le differenze tra il magnetofono telefunken 302 ed il modello 302 ts?

grazie Marco

Wolfgang Bauer
28.Aug.13
  2
Per esempio, il 302TS ha un contatore.
Il 302 non lo fa.
Maggiori dettagli possono essere trovati facilmente quando si guarda attraverso il documento.
Per esempio ==> schema

Saluti WB.
