• Year
  • 1968–1971
  • Category
  • Microphone or Pick-up element
  • Radiomuseum.org ID
  • 337082

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org

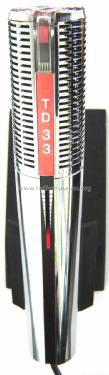

  • Model: Dynamisches Mikrofon TD33 E-Nr.: 348 000 128 - Telefunken Deutschland TFK,
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 35 x 35 x 120 mm / 1.4 x 1.4 x 4.7 inch
  • Notes
  • Dynamisches Reportermikrofon TD33 für Magnetophon M300TS und M302TS mit 1,5m Anschlusskabel und 5pol. DIN-Stecker. Schiebeschalter für Sprache/Musik und Pegelregler, Nierencharakteristik.

    • Frequenzbereich: 40 - 14000 Hz
    • Impedanz: 750 Ω
    • Empfindlichkeit: 0,2 mV/µBar
    • eingebautes Instrument zur Aussteuerungskontrolle
    • Stecker MAS50S, Belegung: 1+3 Signal, 2 Masse, 4 Instrument.

    Preis ab 1970/71: DM 89,-

  • Net weight (2.2 lb = 1 kg)
  • 0.164 kg / 0 lb 5.8 oz (0.361 lb)
  • Price in first year of sale
  • 74.00 DM
  • Mentioned in
  • -- Original prospect or advert (Telefunken Geräte/Zubehörkatalog 1969/70 Seite 29)
  • Literature/Schematics (1)
  • Handbuch RFP 1968/69 S.407, bis 1970/71 S.486; Thiele
  • Author
  • Model page created by Holger Struthoff. See "Data change" for further contributors.
