• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1970 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 271875

• Number of Tubes
• 6

• Valves / Tubes
• PCL86 PCL805 PCF802 PL504 PY88 A50-120W

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

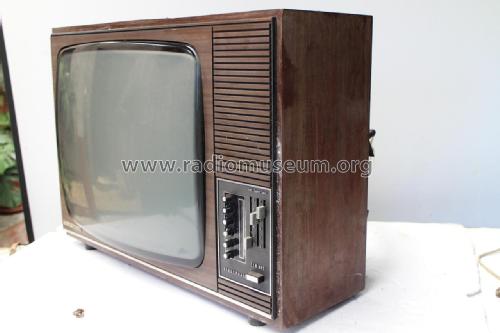

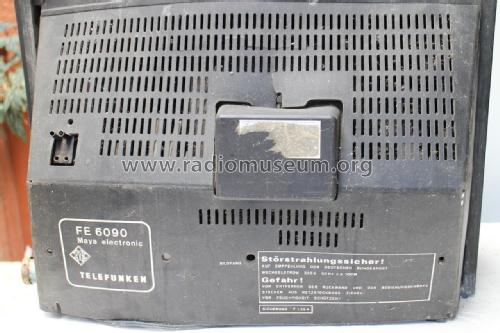

• Model: Maya electronic FE 6090 - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 590 x 425 x 320 mm / 23.2 x 16.7 x 12.6 inch

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Author
• Model page created by Manuel Albano Neves. See "Data change" for further contributors.
