Mignonette B Serie del Giubileo versione II

Mignonette B Serie del Giubileo; Telefunken Italia, (ID = 950557) Radio
Mignonette B Serie del Giubileo; Telefunken Italia, (ID = 466699) Radio Mignonette B Serie del Giubileo; Telefunken Italia, (ID = 466708) Radio
Mignonette B Serie del Giubileo; Telefunken Italia, (ID = 743014) Radio Mignonette B Serie del Giubileo; Telefunken Italia, (ID = 466710) Radio

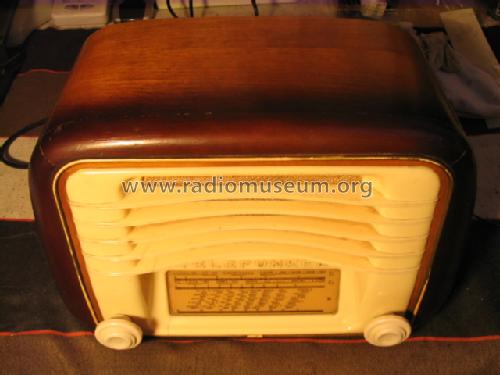

Mignonette B Serie del Giubileo; Telefunken Italia, (ID = 466707) Radio Mignonette B Serie del Giubileo; Telefunken Italia, (ID = 466711) Radio

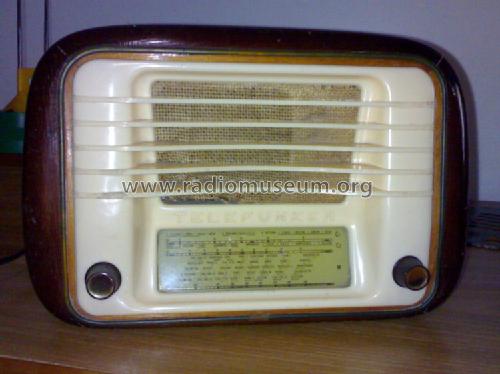

Mignonette B Serie del Giubileo; Telefunken Italia, (ID = 699577) Radio Mignonette B Serie del Giubileo; Telefunken Italia, (ID = 944304) Radio

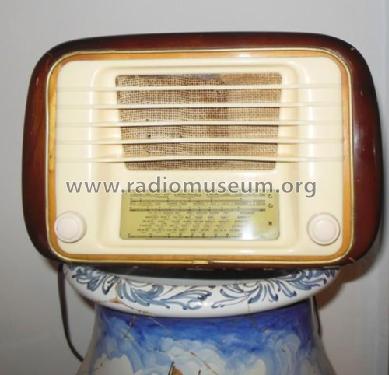

Mignonette B Serie del Giubileo; Telefunken Italia, (ID = 944305) Radio Mignonette B Serie del Giubileo; Telefunken Italia, (ID = 1916221) Radio
Use red slider bar for more.
Mignonette B Serie del Giubileo; Telefunken Italia, (ID = 466699) Radio

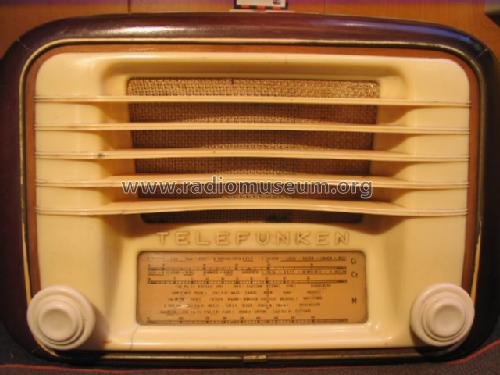

Telefunken Italia,: Mignonette B Serie del Giubileo [Radio] ID = 466699 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mignonette B Serie del Giubileo versione II, Telefunken Italia, Milano

Country:  Italy
Manufacturer / Brand:  Telefunken Italia, Milano
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 125; 140; 160; 180; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 10.4 cm = 4.1 inch
Power out 1 W (1.1 W max.)
from Radiomuseum.org Model: Mignonette B Serie del Giubileo [versione II] - Telefunken Italia, Milano
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 274 x 176 x 140 mm / 10.8 x 6.9 x 5.5 inch
Notes

Esteticamente uguale al mod. Mignonette B, ma con autotrasformatore al posto delle resistenze di caduta, la massima tensione di alimentazione è 220 al posto dei 160 V.
Esteticamente molto simile al modello, prodotto in Brasile dalla locale Telefunken, Mignon E.

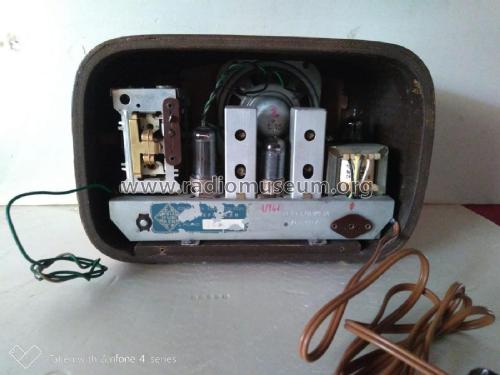

Main differences with respect to the Mignonette B Giubileo:
- Power supply with transformer and therefore only with alternating current, for voltages from 125 up to 220 V.
- Different RF group, with newly designed pulley for string assembly.
- Completely different frequencies scale: the frequencies vary in the opposite direction from the previous models, in a decreasing sense from left to right. In addition, from top to bottom there are first OC1 (instead of OC2), then OC2 and OM.
- Back cover identical to the Mignonette B Giubileo with resistance input, also in the wording. Only two changes: the inscription: "PER GARANTIRE L'EFFICIENZA DEL RICEVITORE IN CASO DI RICAMBI UTILIZZARE SOLO VALVOLE ORIGINALI TELEFUNKEN" in the lower center, and more difficult to identify, the symbol of the antenna in the lower left corner, next to the M of Mignonette (instead of in the upper left corner).
