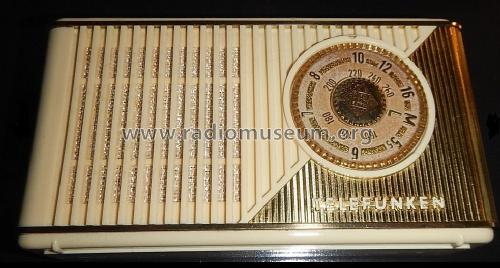

Telefunken: Partner III 3071 [Radio] ID = 2286700 1400x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Partner III 3071, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF101 AF101 AF101 OC602 OC604 OC604spez OC604spez OA174 OA174
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 4x1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Partner III 3071 - Telefunken Deutschland TFK,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 150 x 82 x 38 mm / 5.9 x 3.2 x 1.5 inch
Notes Wahlweise rote oder messingfarbene Blende. Modell ist elektrisch baugleich mit AEG Carina 61.
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Price in first year of sale 129.00 DM
Collectors' prices
Source of data HdB d.Rdf-& Ferns-GrH 1960/61 / Radiokatalog Band 1, Ernst Erb
Mentioned in Funkgeschichte der GFGF (9503)
Literature/Schematics (1) -- Original-techn. papers.
