Primär-Empfänger E184
Use red slider bar for more.

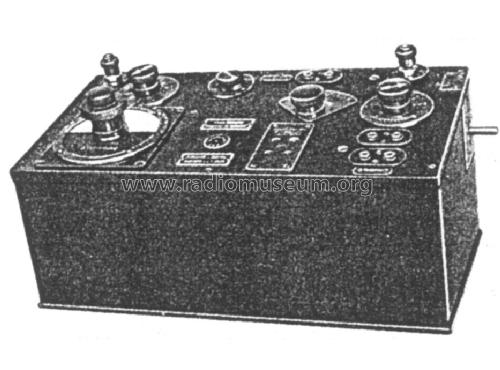

Telefunken: Primär-Empfänger E184 [Crystal] ID = 612926 933x692
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1918 ?? | Category: Detector-Radio (Crystal or diode, without tubes/transistors) |
| Main principle | Crystal or Solid State Detector; Crystal-detection 1 circuit (no tubes) |
|---|---|
| Tuned circuits | 1 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | No Power needed |
| Loudspeaker | - For headphones or amp. |
| Power out | |
| from Radiomuseum.org | Model: Primär-Empfänger E184 - Telefunken Deutschland TFK, |
| Material | Wooden case |
| Shape | Tablemodel, Box - most often with Lid (NOT slant panel). |
| Dimensions (WHD) | 370 x 190 x 190 mm / 14.6 x 7.5 x 7.5 inch |
| Notes | Primär-Empfänger für Wellen von 250m bis 2500m an kleinen und mittleren Antennen (Antennenkapazität bis 1200cm). Mit Zusatzapparat EZ 208a geeignet für Wellen bis 7000m. |
| Net weight (2.2 lb = 1 kg) | 14 kg / 30 lb 13.4 oz (30.837 lb) |
| Literature/Schematics (1) | Telefunken-Stationen und -Geräte, Anfang 1919 (das "Blaue Buch") |
Model page created by Nikolaus Löwe. See "Data change" for further contributors.
