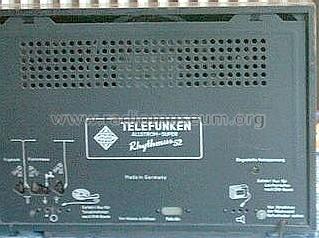

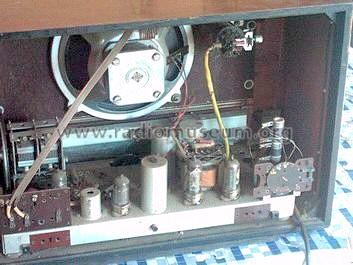

Rhythmus 52GW; Telefunken (ID = 143855) Radio Rhythmus 52GW; Telefunken (ID = 143856) Radio
Use red slider bar for more.
Rhythmus 52GW; Telefunken (ID = 504841) Radio
Telefunken: Rhythmus 52GW [Radio] ID = 504841 915x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rhythmus 52GW, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCH42 UF41 UAF42 UL41 UM11 UY41
Main principle Superheterodyne (common); ZF/IF 472/10700 kHz; 2 AF stage(s); Reflex
Tuned circuits 6 AM circuit(s)     5 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 110; 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Rhythmus 52GW - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 340 x 220 mm / 19.7 x 13.4 x 8.7 inch
Notes KW-Lupe. UKW Demodulation mit Flankengleichrichter.
Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)
Price in first year of sale 348.00 DM
Source of data Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange-Nowisch
Mentioned in Funkschau (5113)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
