• Country
• Italy

• Manufacturer / Brand
• Telefunken Italia, Milano

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 144531

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 6A7 6AY8G 80

• Main principle
• Superheterodyne (common); Reflex

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

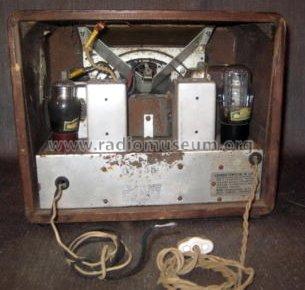

• Model: Roma - Telefunken Italia, Milano

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• Ved. Siemens T Roma.

  The tube 6AY8G (IF amplifier and detector) is reflexed as the output amplifier stage.

• Price in first year of sale
• 450.00 ITL

• Source of data
• Guida Pratica Antique Radio III (2000)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
