Schönbrunn II (2)

Schönbrunn II ; Telefunken; Wien (ID = 442887) Television

Schönbrunn II ; Telefunken; Wien (ID = 442888) Television

Schönbrunn II ; Telefunken; Wien (ID = 442889) Television
Schönbrunn II ; Telefunken; Wien (ID = 442886) Television
Use red slider bar for more.
Schönbrunn II ; Telefunken; Wien (ID = 442886) Television

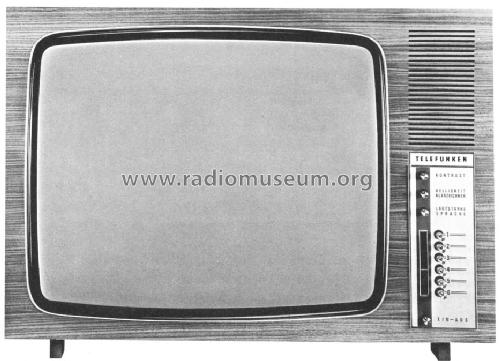

Telefunken; Wien: Schönbrunn II [Television] ID = 442886 933x674
Select picture or schematic to display from thumbnails on the right and click for download.
For model Schönbrunn II (2), Telefunken; Wien

Country:  Austria
Manufacturer / Brand:  Telefunken; Wien
Year: 1969 Category: Television Receiver (TV) or Monitor
Valves / Tubes 11: PCF201 PCF200 PFL200 PCH200 PL84 PCL85 PCF802 PL504 PY88 DY802
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Schönbrunn II - Telefunken; Wien
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Chassis ident mit Kapsch Viennastar 1000
Empfangsbereich VHF/UHF
4 verschiedene Bildröhren:A50-120W, A59-23W, A61-120W, A65-13W.
2 verschiedene Ablenkeinheiten.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
